Lighted Door Sills.... Long and informative install with pics!

Reply




Thread Tools Search this Thread
Old 12-03-2009, 08:46 PM   #1
elmo3000
2nd Gear Member

elmo3000's Avatar

Join Date: Nov 2009
Vehicle: 2007 Ford Mustang Eleanor
Location: MD
Posts: 377
Default Lighted Door Sills.... Long and informative install with pics!

Well I hope that this helps anyone that is on the edge or about to do this install.... really not too difficult and looks killer! 5/10 for difficulty with the hardest part being the splicing of the wires.

So I installed these today in my GT (non convertible), took just over an hour (including taking photos etc):

1. So what comes in the box?

Click the image to open in full size.

You get the door sills x2 (Left / Right)
Zip ties x6
Wiring with lighting
Alcohol wipes x2
Instructions (Touch and go if you are not confident at this stuff)

2. Disconnect the Negative terminal from the battery. You will need an 8mm socket wrench.

Click the image to open in full size.

3. The next step is to partially remove the passenger side A Pillar (you don't need to fully remove this). Start at the end furthest away from the dash and just grab it either side and give it a good tug and work your way forward.

Click the image to open in full size.

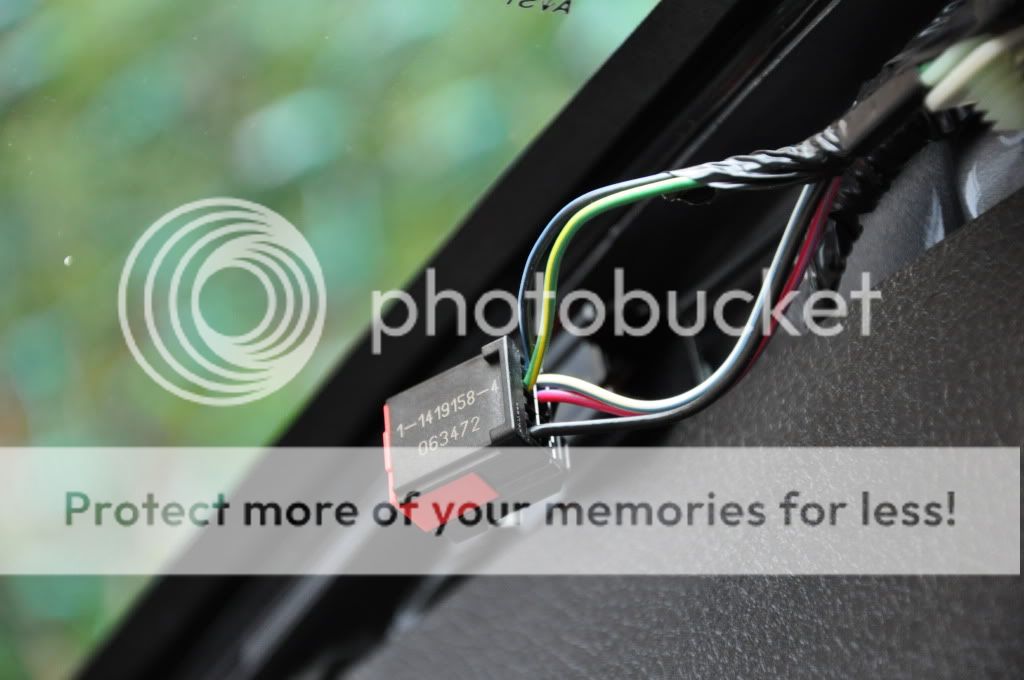

You should be able to see the cabling hidden behind the pillar, disconnect the wiring plug

Click the image to open in full size.

4. Now you will need to separate out the specific cables that you will need when you start to splice in the supplied cabling (Red and Black cables) in the kit. You need to find the "Black/Light Blue" and the "Yellow/Green"

The 2 at the top left!

Click the image to open in full size.

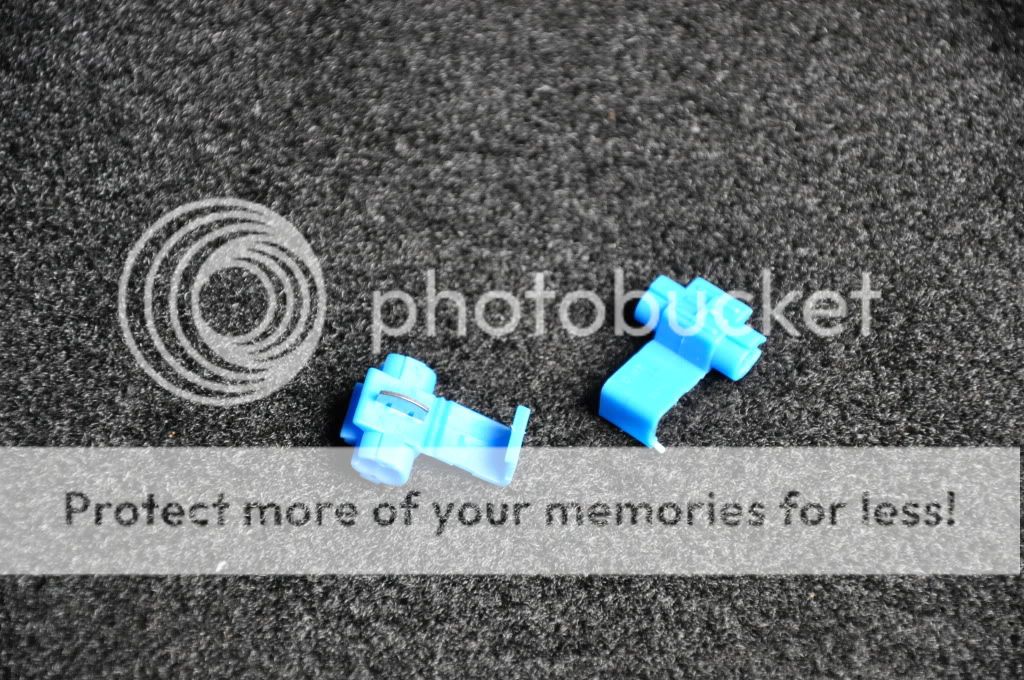

5. Now comes the tricky part (well not really) - The Wiring! So we need to attach the supplied wires (Red / Black) into the current wiring ("Black/Light Blue" and the "Yellow/Green"). To do this I used splicing taps which are a little easier than cutting the wire cover off from one wire and soldering the new wire to it.

Click the image to open in full size.

So you will need the Red wire (supplied) to connect to the Black/Blue (in car already) and the Black wire (supplied) to connect to the Yellow/Green:

Click the image to open in full size.
Click the image to open in full size.

Once happy, use electrical tape to wrap each connection individually, I then used a zip tie to tidy the cables and keep it out of the way. (Unfortunately you cannot tell if there is power running to the cables as the battery is disconnected.... you could always reconnect the battery to see if it all working at this stage and your connections are good.... don't forget to disconnect again when you continue)

6. You should now have something that looks a little similar to this:
(I separated the wires so that I knew what I was working with.... the short cable stays on the passenger side and the longer cable I placed across to the drivers side)

Click the image to open in full size.

7. Now remove the passenger door sill, again it is a grab and a quick pull up to make it release.... the clips are sturdy so you can use a bit of force.

Click the image to open in full size.

Here is the underside so you can see what you are dealing with:

Click the image to open in full size.

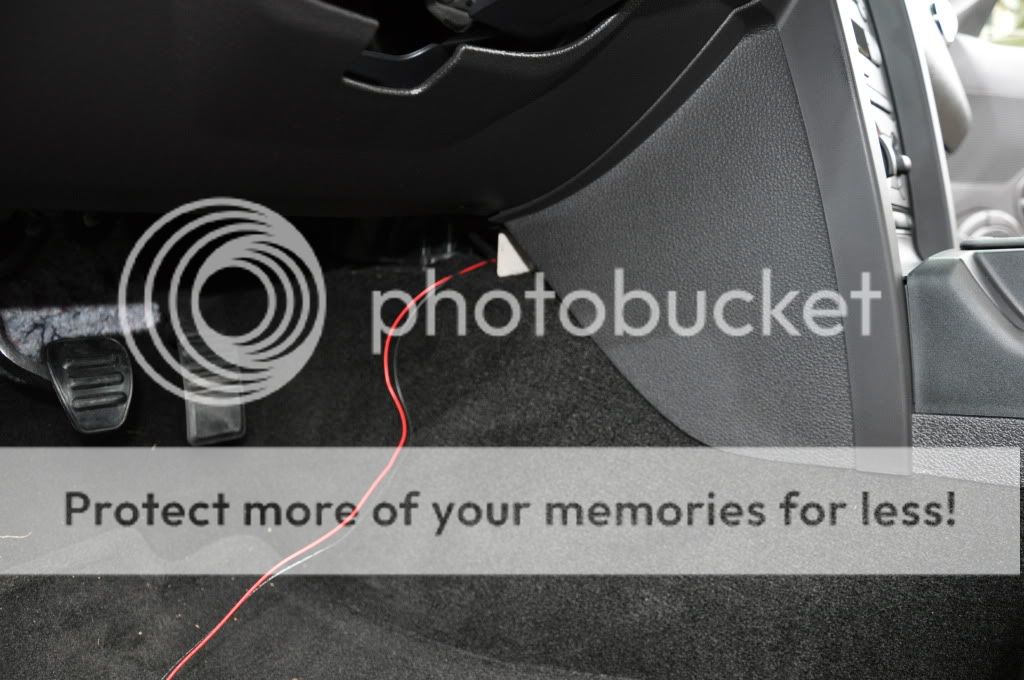

8. Here you will need to remove (or pull forward) the passenger kick panel so that you can run the wires now towards the floor and along to where the new door sill will be.

Click the image to open in full size.

I actually used some tape to keep the wire in place down the crease so that I didn't pinch anything when putting the panels back in place.... would be a shame to get this far and do something to ruin it all! This doesn't have to look tidy as it will all be hidden when the panels are put back in place.

Click the image to open in full size.

9. Once happy with your wiring, you can replace the kick panel, leaving the wire that is to be wired to the drivers side free to be run across. You will now need to run the wire to the new passenger side door sill and connect it up ready for placement. Before you do this, rub the area where the M3 tape is going to stick with the alcohol rub and then fit the new door sill. Again be careful not to pinch any wires.

Click the image to open in full size.

Once in place it should look like this:

Click the image to open in full size.

You can now put the passenger A Pillar back to normal.

Click the image to open in full size.

10. We now need to run the cable across to the drivers side. Use the zip ties supplied to attach the cable to current cable just behind/below the glove box. I attached the zip ties first but only loosely so they were hanging from the current car wires and then ran the new cable through them and then tightened them..... found this was an easier way to do it.

Click the image to open in full size.

Once happy, cut back the excess plastic from the zip ties and then rotate them so that there are no sharp edges to catch on passengers legs.

CONT......
This ad is not displayed to registered or logged-in members.
Register your free account today and become a member on Mustang Forums!
__________________


Cervini Full C-Series Body Kit, Raceline 20x8.5 front 20x 10 rear, Raceline 3 Spoke Knock Offs, Pirelli P-Zero Rosso ZR(Soon to be Nitto), Complete ROUSH® Suspension Kit, Stage2 ROUSHcharger® Kit, Angel Eyes headlights, Euro Tail Lights, Dual magnaflow side exhaust, Twin A Pillar Gauge Pods (Boost, Air/Fuel Ratio), Push Button Start.... lots of other cosmetics!
elmo3000 is offline   Reply With Quote
Old 12-03-2009, 08:47 PM   #2
elmo3000
2nd Gear Member

elmo3000's Avatar

Join Date: Nov 2009
Vehicle: 2007 Ford Mustang Eleanor
Location: MD
Posts: 377
Default

11. Run the cable through the gap in the center console... you should be able to see this clearly, as you can see straight through to the drivers side once through, it should look like this:

Click the image to open in full size.

Again, zip tie the cable up to the existing cables in the car just under the steering wheel:

Click the image to open in full size.

Once it is all pulled tight you should not be able to see any of the cable.

12. OK, so we are nearly there.... repeat the procedure for removing the drivers door sill as we did earlier with the passenger side,

Click the image to open in full size.

run the new cable that we tidied down through the drivers kick panel and connect up to the new door sill. You will notice that there is an excess of cable, far more than required (better to have more rather than less!! ) so just use another zip tie and make this look good. You can tuck the excess in the kick panel. It should look like this:

Click the image to open in full size.

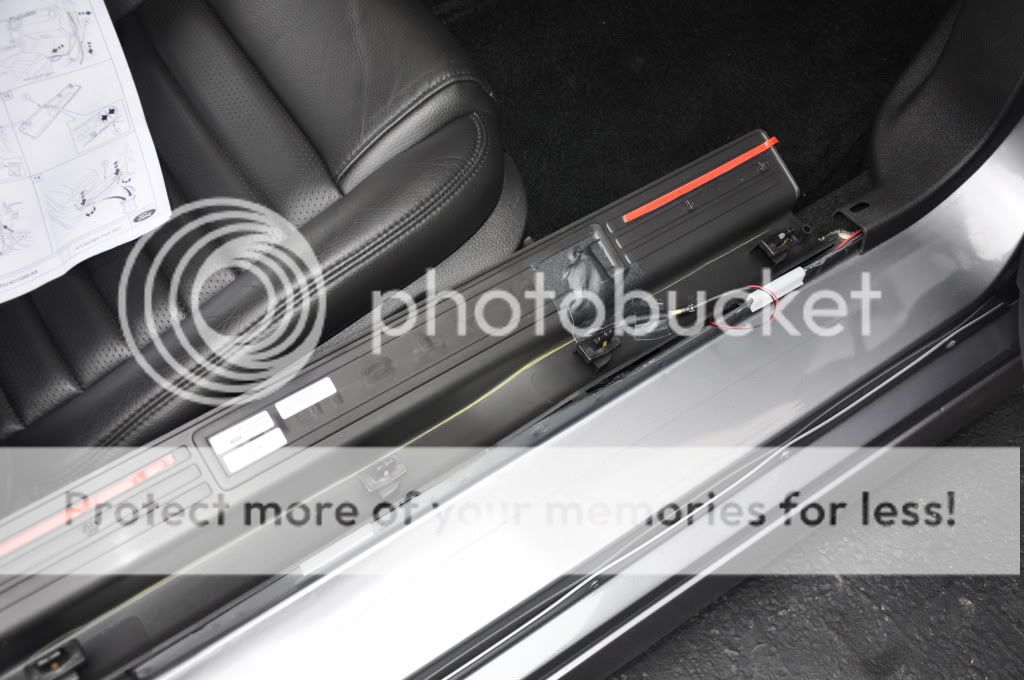

13. Again, clean the area down with the alcohol rub and fit the new door sill being careful not to pinch any wires!!

Click the image to open in full size.

Now connect up the battery terminal again!

All you have to do (like me) is sit back, be patient and wait for nightfall..... and reap the rewards for your hard work! This is how is looks once finished and at night.

Click the image to open in full size.
Click the image to open in full size.

I hope this is of some use to anyone doing this install, and are as happy with the result as I was!

Happy driving!

ELMO

(This is just a helping guide, please don't hold me responsible if there are any errors or something goes wrong on your install)
__________________


Cervini Full C-Series Body Kit, Raceline 20x8.5 front 20x 10 rear, Raceline 3 Spoke Knock Offs, Pirelli P-Zero Rosso ZR(Soon to be Nitto), Complete ROUSH® Suspension Kit, Stage2 ROUSHcharger® Kit, Angel Eyes headlights, Euro Tail Lights, Dual magnaflow side exhaust, Twin A Pillar Gauge Pods (Boost, Air/Fuel Ratio), Push Button Start.... lots of other cosmetics!

Last edited by elmo3000; 12-03-2009 at 08:52 PM.
elmo3000 is offline   Reply With Quote
Old 12-03-2009, 08:55 PM   #3
07 Stang
6th Gear Member

07 Stang's Avatar

Join Date: Jan 2007
Location: Southeast Virginia
Posts: 6,072
Default

Great write up! A moderator needs to make this a sticky in the "How toos."

Thanks Elmo3000!
__________________


Blue Mustang Registry #363
07 Stang is offline   Reply With Quote
Old 12-03-2009, 09:06 PM   #4
Nuke
6th Gear Member

Nuke's Avatar

Join Date: Jun 2007
Vehicle: 2007 GT
Location: PA to KY ('07) to IL ('09) to MS ('10) to FL ('11)
Posts: 16,109
Send a message via AIM to Nuke Send a message via Yahoo to Nuke Send a message via Skype™ to Nuke
Default

Sweet! I like the look but I have other mods that take precedence. But I'll put it on my list.

Have you done something with your interior lighting that it looks so blue or is it just the camera?
__________________
Rick
07 GT Prem: Alloy, MT, 3.55's, Steeda CAI w/Brenspeed tunes, FRPP Stingers, 275/40/18 Goodyear Eagle F1 A/S on SVT Cobras (OE GT500's), 14" shorty, Wheelskin side scoops & qtr window louvers, A-H rear window louvers, SHR honeycomb blackout panel, Sequentials, Hella Optilux Extreme XY fogs, Silverstars
06 V6: Legend Lime, Pony Package, 14" shorty, Sequentials, Hella Optilux Extreme XY fogs, Silverstars
Nuke is offline   Reply With Quote
Old 12-03-2009, 09:18 PM   #5
elmo3000
2nd Gear Member

elmo3000's Avatar

Join Date: Nov 2009
Vehicle: 2007 Ford Mustang Eleanor
Location: MD
Posts: 377
Default

Quote:
Originally Posted by Nuke View Post
Sweet! I like the look but I have other mods that take precedence. But I'll put it on my list.

Have you done something with your interior lighting that it looks so blue or is it just the camera?
Yeah, I changed out the map lights for blue LEDs! Much prefer that to the whites..... you get the few that say, "Oh you'll get bored of those.... what happens when you need to read something?"

Well, they give off enough light to read.... but who reads when you have a mustang..... DRIVE!! LOL (Nav not maps!)
__________________


Cervini Full C-Series Body Kit, Raceline 20x8.5 front 20x 10 rear, Raceline 3 Spoke Knock Offs, Pirelli P-Zero Rosso ZR(Soon to be Nitto), Complete ROUSH® Suspension Kit, Stage2 ROUSHcharger® Kit, Angel Eyes headlights, Euro Tail Lights, Dual magnaflow side exhaust, Twin A Pillar Gauge Pods (Boost, Air/Fuel Ratio), Push Button Start.... lots of other cosmetics!
elmo3000 is offline   Reply With Quote
Old 12-03-2009, 09:41 PM   #6
jdphillips73
4th Gear Member

jdphillips73's Avatar

Join Date: Mar 2007
Vehicle: 2007 pony package mustang
Location: tennessee
Posts: 1,210
Default

ive been eyeing this mod... excellent write up, sticky worthy for sure, if not, ill bookmark it.

it looks to me like they took some regular mustang door sills and put 2 leds underneath a "ford racing" plate on the top and sold it for almost 300 bucks...notice how when you have the "ford racing" sills upside down, they read "mustang" hmmm...
__________________
WANTED: Torch Red GT Rear Bumper


X-Charger #218, 8.8 w/3.73 rear, 4" aluminum driveshaft, and much more
jdphillips73 is offline   Reply With Quote
Old 12-03-2009, 09:47 PM   #7
06z28eater
3rd Gear Member

06z28eater's Avatar

Join Date: Jan 2007
Vehicle: 2006 Mustang GT
Location: Memphis,TN
Posts: 909
Send a message via AIM to 06z28eater Send a message via Yahoo to 06z28eater
Default

great stuff man!
__________________


-2012 5.0- Godspeed Omega's, Roush Axle-Backs, CDC Chin Spoiler, 18% Tint, CDC Trunk Panel, GT500 Spoilerand More


-2002 GT 5 Speed Full Bolt Ons
06z28eater is offline   Reply With Quote
Old 12-03-2009, 09:54 PM   #8
elmo3000
2nd Gear Member

elmo3000's Avatar

Join Date: Nov 2009
Vehicle: 2007 Ford Mustang Eleanor
Location: MD
Posts: 377
Default

it looks to me like they took some regular mustang door sills and put 2 leds underneath a "ford racing" plate on the top and sold it for almost 300 bucks...notice how when you have the "ford racing" sills upside down, they read "mustang" hmmm...[/QUOTE]

I'm pretty sure that is exactly what they did.... I thought about custom making some, but my time and effort doing other things was more important. They are expensive.... but I love the look they give!
__________________


Cervini Full C-Series Body Kit, Raceline 20x8.5 front 20x 10 rear, Raceline 3 Spoke Knock Offs, Pirelli P-Zero Rosso ZR(Soon to be Nitto), Complete ROUSH® Suspension Kit, Stage2 ROUSHcharger® Kit, Angel Eyes headlights, Euro Tail Lights, Dual magnaflow side exhaust, Twin A Pillar Gauge Pods (Boost, Air/Fuel Ratio), Push Button Start.... lots of other cosmetics!
elmo3000 is offline   Reply With Quote
Old 12-04-2009, 03:12 AM   #9
nmd55
3rd Gear Member

nmd55's Avatar

Join Date: Jul 2008
Vehicle: 2011 GT500
Location: Tampa, FL
Posts: 963
Default

nice writeup. i did this install too and it wasnt too bad
__________________
2011 RaceRed GT500
nmd55 is offline   Reply With Quote
Old 12-04-2009, 07:18 AM   #10
05 Mustang
6th Gear Member

Join Date: Sep 2006
Vehicle: 2012 BOSS 302
Location: Canton, Georgia
Posts: 10,976
2012_CO_BOSS_302
Default

very nice, great write up!
__________________

2012 BOSS 302
Competiton Orange/Black

1 of 67 (Car Cover, Floor Mats, No Recaros)
#0614 of 3250 (Overall)

20x9 & 20x11 Gloss Black Forgrstar F14's l 255/35/20 & 305/30/20 Pirelli P-Zero Tires l Eibach Sportlines l BMR Adjustable Panhard Bar l MMD Hood Struts l Shorty Antenna (AntennaX.com) l Sound Pipe Delete (CoolTechLLC.com)
05 Mustang is offline   Reply With Quote
Old 12-04-2009, 07:41 AM   #11
JDWalton
5th Gear Member

JDWalton's Avatar

Join Date: Apr 2007
Vehicle: 2013 BOSS 302
Location: FL
Posts: 2,567
Default

holy crap, those are 300 dollars? they look so nice though.
__________________
2013 BOSS 302

My Boss Page

2008 Superchaged GT (SOLD)
Dyno Sheet and vids here
My Page Here
JDWalton is offline   Reply With Quote
Old 12-04-2009, 08:06 AM   #12
elmo3000
2nd Gear Member

elmo3000's Avatar

Join Date: Nov 2009
Vehicle: 2007 Ford Mustang Eleanor
Location: MD
Posts: 377
Default

Quote:
Originally Posted by JDWalton View Post
holy crap, those are 300 dollars? they look so nice though.
Yes, unfortunately sometimes nice is expensive! I hate big priced items for little cosmetics..... but with the price high, it means less people have them.... another unique(ish) install on my car! I actually picked them up for just under 250!
__________________


Cervini Full C-Series Body Kit, Raceline 20x8.5 front 20x 10 rear, Raceline 3 Spoke Knock Offs, Pirelli P-Zero Rosso ZR(Soon to be Nitto), Complete ROUSH® Suspension Kit, Stage2 ROUSHcharger® Kit, Angel Eyes headlights, Euro Tail Lights, Dual magnaflow side exhaust, Twin A Pillar Gauge Pods (Boost, Air/Fuel Ratio), Push Button Start.... lots of other cosmetics!
elmo3000 is offline   Reply With Quote
Old 12-04-2009, 08:20 AM   #13
JDWalton
5th Gear Member

JDWalton's Avatar

Join Date: Apr 2007
Vehicle: 2013 BOSS 302
Location: FL
Posts: 2,567
Default

hmm, wonder if we can source the plates and build them ourself
__________________
2013 BOSS 302

My Boss Page

2008 Superchaged GT (SOLD)
Dyno Sheet and vids here
My Page Here
JDWalton is offline   Reply With Quote
Old 12-04-2009, 08:26 AM   #14
antonio1988
4th Gear Member

antonio1988's Avatar

Join Date: Jul 2008
Vehicle: 2008 Ford Mustang GT
Location: Miami
Posts: 1,175
Default

A+ job on the write up, def should give just about anyone the confidence to do it on their own... I hope the mods make it a sticky!!!
__________________
On 3 Turbo l XXR l Steeda l CHE l Del Pino 5R l Tociko l Saleen l FRPP

Amped Speedlab l Blow By Racing l Dade County Customs l Mobile Mod Performance
antonio1988 is offline   Reply With Quote
Old 12-04-2009, 03:52 PM   #15
americaniron
5th Gear Member

Join Date: Mar 2007
Vehicle: 06 Mustang GT
Location: Elizabeth City N.C.
Posts: 2,782
Default

Great write up, and pics. I like it.
__________________
americaniron is offline   Reply With Quote
Old 12-04-2009, 03:57 PM   #16
Croft
3rd Gear Member

Croft's Avatar

Join Date: Jul 2009
Vehicle: 2007 Ford Mustang GT/CS
Location: Maryland
Posts: 649
Default

Very cool! I see you are in MD, where abouts? If I ever do this would you mind helping me?
__________________
The Real "Laura" Croft
'07 Performance White GT/CS
All SHOW and a little GO!!
NEW BEST 12.4 @ 113 MPH
Croft is offline   Reply With Quote
Old 12-04-2009, 05:56 PM   #17
yc420
2nd Gear Member

yc420's Avatar

Join Date: Apr 2008
Vehicle: 2008, Ford, Mustang GT
Location: Florida
Posts: 323
Default

GREAT write up. I've done a similar job when I was installing the BBR trunk release kit into my Shelby GT500. This should definitely be added to the "How to" section.
__________________
'94 Mustang GT - 5 Speed
'08 Mustang GT - 5 Speed
'09 Shelby GT500
yc420 is offline   Reply With Quote
Old 12-04-2009, 08:34 PM   #18
elmo3000
2nd Gear Member

elmo3000's Avatar

Join Date: Nov 2009
Vehicle: 2007 Ford Mustang Eleanor
Location: MD
Posts: 377
Default

Quote:
Originally Posted by 07CaliGTstang View Post
Very cool! I see you are in MD, where abouts? If I ever do this would you mind helping me?
Harford County Bel Air..... you? Of course I'll help.... if you are local!
__________________


Cervini Full C-Series Body Kit, Raceline 20x8.5 front 20x 10 rear, Raceline 3 Spoke Knock Offs, Pirelli P-Zero Rosso ZR(Soon to be Nitto), Complete ROUSH® Suspension Kit, Stage2 ROUSHcharger® Kit, Angel Eyes headlights, Euro Tail Lights, Dual magnaflow side exhaust, Twin A Pillar Gauge Pods (Boost, Air/Fuel Ratio), Push Button Start.... lots of other cosmetics!
elmo3000 is offline   Reply With Quote
Old 12-04-2009, 09:00 PM   #19
Croft
3rd Gear Member

Croft's Avatar

Join Date: Jul 2009
Vehicle: 2007 Ford Mustang GT/CS
Location: Maryland
Posts: 649
Default

Quote:
Originally Posted by elmo3000 View Post
Harford County Bel Air..... you? Of course I'll help.... if you are local!
Ok, not too far. I am in Carroll County. Not too far from Westminster. Yeah, when I stop adding on the Go/Drag strip mods, I'll have to put this on my "looking pretty" list.



On a side note......I don't know if you are interested in the local mustang club scene or not, but if you are check out www.mdpatriotstangs.com

We do alot of cruising, shows, and drag racing. You should join us. We have a ton of fun.

Thanks again for the great write up. I will most definitey get a hol dof you when the time is right. Thanks

Laura
__________________
The Real "Laura" Croft
'07 Performance White GT/CS
All SHOW and a little GO!!
NEW BEST 12.4 @ 113 MPH
Croft is offline   Reply With Quote
Old 12-05-2009, 05:58 AM   #20
David_Noxfroid
1st Gear Member

David_Noxfroid's Avatar

Join Date: Aug 2008
Posts: 114
Default

Thanks for Instructions.
__________________


Collected 55.000$ to buy s197 [26.02.2011 back to work ]
David_Noxfroid is offline   Reply With Quote
Old 12-05-2009, 05:58 AM
MustangForums
Ford Mustang




Paid Advertisement




Reply

Tags
07, 2007, 2009, cobra, door, ford, gt, light, lighted, m3, mustang, panel, red, sill, sills, svt, yellow

Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off

Forum Jump

Advertising

Featured Sponsors
Vendor Directory
New Sponsors
All times are GMT -5. The time now is 07:49 AM.

© Internet Brands, Inc.


This forum is owned and operated by Internet Brands, Inc., a Delaware corporation. It is not authorized or endorsed by the Ford Motor Company and is not affiliated with the Ford Motor Company or its related companies in any way. Ford® is a registered trademark of the Ford Motor Company
Emails Backup
