How To: Repin your harness

Reply




Thread Tools Search this Thread
Old 04-17-2008, 07:30 PM   #1
sleeper_inc
6th Gear Member

sleeper_inc's Avatar

Join Date: Sep 2006
Vehicle: 1988, Mustang, LX
Location: Regina Beach, Sask
Posts: 9,990
Default How To: Repin your harness

How to re-pin a harness. I'm using a 1989 harness from a 2.3 manual car. It should be the same for a 1987-1990 mustan with either a auto or manual transmission (since its only the computer to engine bay harness)

Click the image to open in full size.
This is a wiring harness out of a 1987-1990 mustang 2.3. Its the computer to engine bay harness.

Click the image to open in full size.
Click the image to open in full size.
The protective black case on top helps stop the pins from backing out and also protechs them from rubbing on metal and shorting out.

Click the image to open in full size.
Here I took the case off to get at the pins using a small screw driver.

Click the image to open in full size.
Another way of keeping the pins in is this red casing. Remove it using a small flat headed screw driver with a back and forth motion (like in the next picture)

Click the image to open in full size.

Click the image to open in full size.
The inner casing has been removed, and now the pins are ready to be removed.

Click the image to open in full size.
**Make sure to number what side has what number of pin to make it easier to see where the pins go (trust me, this helps alot because then you don't have to move the harness back and forth between yourself and the computer).

Click the image to open in full size.
I found using a small zip tie works well for taking the pin out without damaging it in any way shape or form.

Click the image to open in full size.
Click the image to open in full size.
List what color wire is going to do what (stops you from getting confused and wiring it incorrecty)(Quilty of doing that)

Click the image to open in full size.
Click the image to open in full size.
Click the image to open in full size.
Click the image to open in full size.

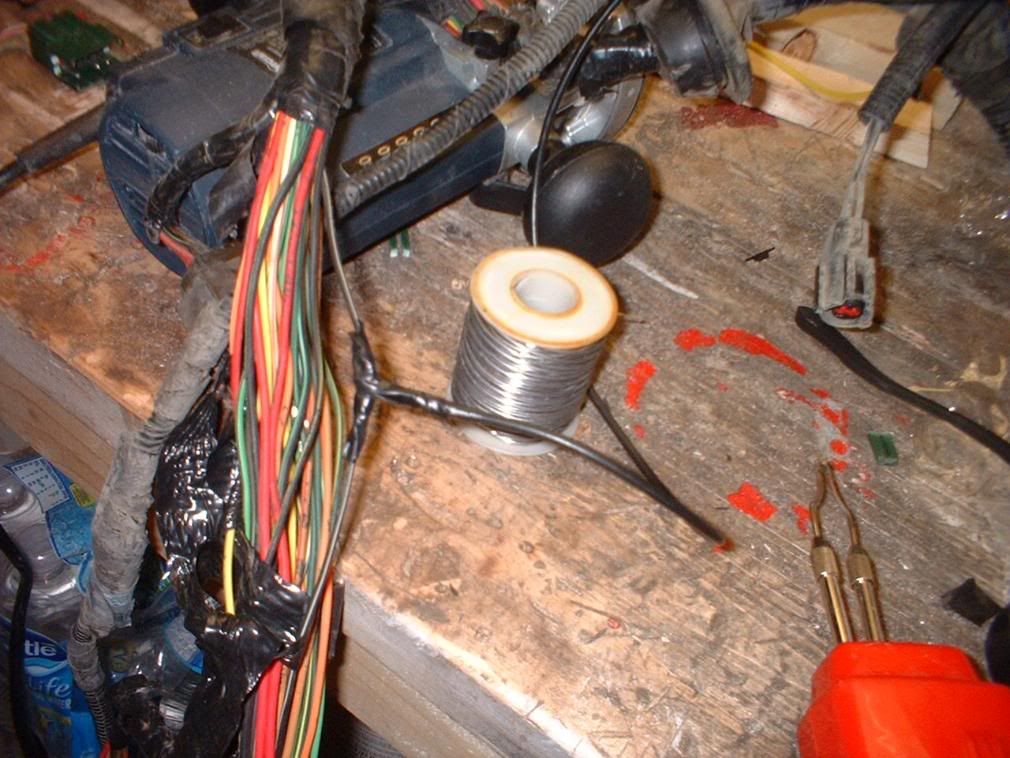

This is how I joined the two wires without cutting a connection. Stip the insolation off the wire being connected (about a 1/4") then strip and cut about the same from the wiring being connected to. Then solder the joints together, and then tape to keep them from touching, causing them to short out.

Click the image to open in full size.

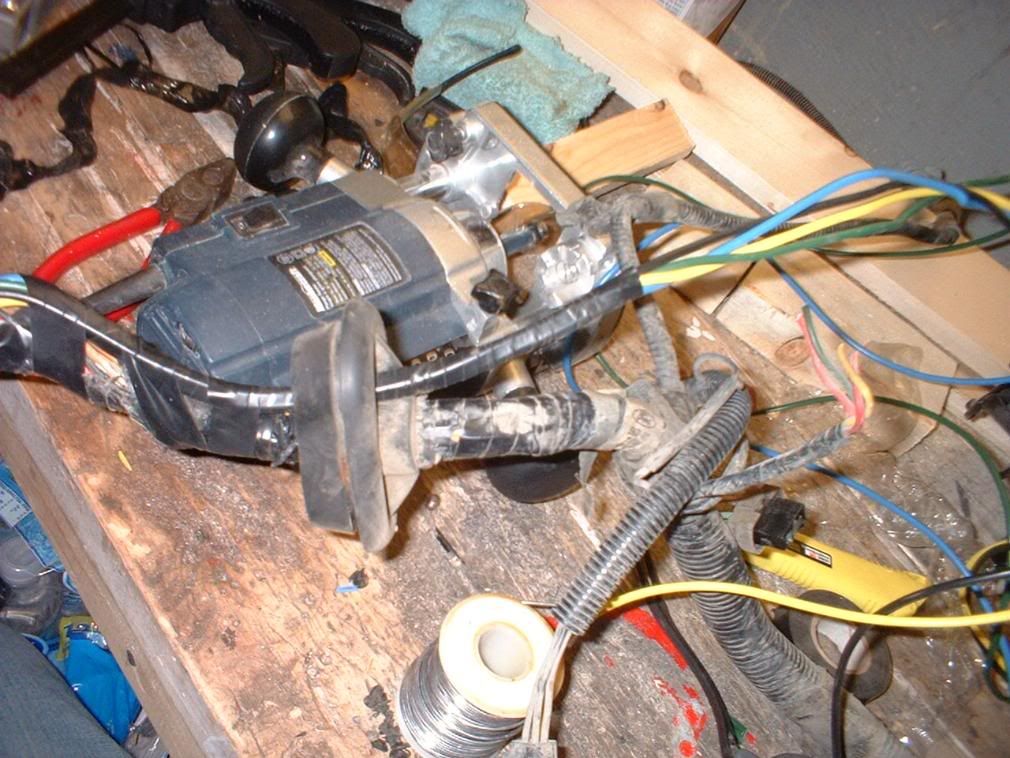

Since my wiring harness was out, I connected them higher up to make it cleaner and look stock(ish).

Click the image to open in full size.
Had to drill a hole through the gromit because of the gauge of wiring I used, but its also a blessing because it made it easier to move the wiring closer to the wall for a mounting point.

Click the image to open in full size.
I also deleted my A/C condenser and clutch lines since I longer want A/C

Click the image to open in full size.
Wiring all together and ready to be installed

This ad is not displayed to registered or logged-in members.
Register your free account today and become a member on Mustang Forums!
__________________
1988 Mustang LX
Ex 2.3 N/A car, built 2.3 turbo with LOTS of goodies! now I gotta find a rear end and a ps/pump XD

1989 Ranger STX 4x4
2.9L auto
274,xxx km's
tinted windows, 2 - 12" kicker comps with a 400.1X at 500watts
sleeper_inc is offline   Reply With Quote
Old 04-17-2008, 08:23 PM   #2
Stang2.3
4th Gear Member

Stang2.3's Avatar

Join Date: Jul 2007
Vehicle: 1989 Mazda Rx7 , 1984 Mustang GT 5.0
Location: Salt Lake City Utah
Posts: 1,342
redsunsfc X1308cc DoritoX
Send a message via MSN to Stang2.3
Default RE: How To: Repin your harness

Awesome bro.... Now about how long do these wire need to be?
__________________
Jake Bastian
1989 Mazda FC3S N/A *Under Construction*
1985 Ford Mustang GT 5.0 *Daily Driver*
Stang2.3 is offline   Reply With Quote
Old 04-17-2008, 08:57 PM   #3
sleeper_inc
6th Gear Member

sleeper_inc's Avatar

Join Date: Sep 2006
Vehicle: 1988, Mustang, LX
Location: Regina Beach, Sask
Posts: 9,990
Default RE: How To: Repin your harness

I made mine about 7 feet, and I cut the extra off
__________________
1988 Mustang LX
Ex 2.3 N/A car, built 2.3 turbo with LOTS of goodies! now I gotta find a rear end and a ps/pump XD

1989 Ranger STX 4x4
2.9L auto
274,xxx km's
tinted windows, 2 - 12" kicker comps with a 400.1X at 500watts
sleeper_inc is offline   Reply With Quote
Old 04-17-2008, 08:59 PM   #4
Stang2.3
4th Gear Member

Stang2.3's Avatar

Join Date: Jul 2007
Vehicle: 1989 Mazda Rx7 , 1984 Mustang GT 5.0
Location: Salt Lake City Utah
Posts: 1,342
redsunsfc X1308cc DoritoX
Send a message via MSN to Stang2.3
Default RE: How To: Repin your harness

Sweet.... so now i need wire.......
__________________
Jake Bastian
1989 Mazda FC3S N/A *Under Construction*
1985 Ford Mustang GT 5.0 *Daily Driver*
Stang2.3 is offline   Reply With Quote
Old 04-23-2008, 05:52 PM   #5
Stang2.3
4th Gear Member

Stang2.3's Avatar

Join Date: Jul 2007
Vehicle: 1989 Mazda Rx7 , 1984 Mustang GT 5.0
Location: Salt Lake City Utah
Posts: 1,342
redsunsfc X1308cc DoritoX
Send a message via MSN to Stang2.3
Default RE: How To: Repin your harness

bump...... workin on wiring
__________________
Jake Bastian
1989 Mazda FC3S N/A *Under Construction*
1985 Ford Mustang GT 5.0 *Daily Driver*
Stang2.3 is offline   Reply With Quote
Old 04-23-2008, 06:03 PM   #6
Stang2.3
4th Gear Member

Stang2.3's Avatar

Join Date: Jul 2007
Vehicle: 1989 Mazda Rx7 , 1984 Mustang GT 5.0
Location: Salt Lake City Utah
Posts: 1,342
redsunsfc X1308cc DoritoX
Send a message via MSN to Stang2.3
Default RE: How To: Repin your harness

havin problems takin the pins out.... how you get them out??
__________________
Jake Bastian
1989 Mazda FC3S N/A *Under Construction*
1985 Ford Mustang GT 5.0 *Daily Driver*
Stang2.3 is offline   Reply With Quote
Old 04-23-2008, 08:06 PM   #7
sleeper_inc
6th Gear Member

sleeper_inc's Avatar

Join Date: Sep 2006
Vehicle: 1988, Mustang, LX
Location: Regina Beach, Sask
Posts: 9,990
Default RE: How To: Repin your harness

I used a zip tie, shoved the little pointed end into the clip holding the pin inplace.
__________________
1988 Mustang LX
Ex 2.3 N/A car, built 2.3 turbo with LOTS of goodies! now I gotta find a rear end and a ps/pump XD

1989 Ranger STX 4x4
2.9L auto
274,xxx km's
tinted windows, 2 - 12" kicker comps with a 400.1X at 500watts
sleeper_inc is offline   Reply With Quote
Old 04-23-2008, 08:11 PM   #8
Stang2.3
4th Gear Member

Stang2.3's Avatar

Join Date: Jul 2007
Vehicle: 1989 Mazda Rx7 , 1984 Mustang GT 5.0
Location: Salt Lake City Utah
Posts: 1,342
redsunsfc X1308cc DoritoX
Send a message via MSN to Stang2.3
Default RE: How To: Repin your harness

i got em thankz bro!
__________________
Jake Bastian
1989 Mazda FC3S N/A *Under Construction*
1985 Ford Mustang GT 5.0 *Daily Driver*
Stang2.3 is offline   Reply With Quote
Old 04-23-2008, 08:25 PM   #9
sleeper_inc
6th Gear Member

sleeper_inc's Avatar

Join Date: Sep 2006
Vehicle: 1988, Mustang, LX
Location: Regina Beach, Sask
Posts: 9,990
Default RE: How To: Repin your harness

No problem, its alot easier to do it this way that with something metal. Plastic bends, metal dosen't[&:]
__________________
1988 Mustang LX
Ex 2.3 N/A car, built 2.3 turbo with LOTS of goodies! now I gotta find a rear end and a ps/pump XD

1989 Ranger STX 4x4
2.9L auto
274,xxx km's
tinted windows, 2 - 12" kicker comps with a 400.1X at 500watts
sleeper_inc is offline   Reply With Quote
Old 04-23-2008, 08:32 PM   #10
Stang2.3
4th Gear Member

Stang2.3's Avatar

Join Date: Jul 2007
Vehicle: 1989 Mazda Rx7 , 1984 Mustang GT 5.0
Location: Salt Lake City Utah
Posts: 1,342
redsunsfc X1308cc DoritoX
Send a message via MSN to Stang2.3
Default RE: How To: Repin your harness

No Problem.... so all i need to wire is four wires???
__________________
Jake Bastian
1989 Mazda FC3S N/A *Under Construction*
1985 Ford Mustang GT 5.0 *Daily Driver*
Stang2.3 is offline   Reply With Quote
Old 04-23-2008, 08:37 PM   #11
sleeper_inc
6th Gear Member

sleeper_inc's Avatar

Join Date: Sep 2006
Vehicle: 1988, Mustang, LX
Location: Regina Beach, Sask
Posts: 9,990
Default RE: How To: Repin your harness

If your using a la, lb, 8ua series computer yes. If a p series... more
__________________
1988 Mustang LX
Ex 2.3 N/A car, built 2.3 turbo with LOTS of goodies! now I gotta find a rear end and a ps/pump XD

1989 Ranger STX 4x4
2.9L auto
274,xxx km's
tinted windows, 2 - 12" kicker comps with a 400.1X at 500watts
sleeper_inc is offline   Reply With Quote
Old 04-23-2008, 09:01 PM   #12
Stang2.3
4th Gear Member

Stang2.3's Avatar

Join Date: Jul 2007
Vehicle: 1989 Mazda Rx7 , 1984 Mustang GT 5.0
Location: Salt Lake City Utah
Posts: 1,342
redsunsfc X1308cc DoritoX
Send a message via MSN to Stang2.3
Default RE: How To: Repin your harness

its a PF3, what else i need??
__________________
Jake Bastian
1989 Mazda FC3S N/A *Under Construction*
1985 Ford Mustang GT 5.0 *Daily Driver*
Stang2.3 is offline   Reply With Quote
Old 04-23-2008, 09:05 PM   #13
sleeper_inc
6th Gear Member

sleeper_inc's Avatar

Join Date: Sep 2006
Vehicle: 1988, Mustang, LX
Location: Regina Beach, Sask
Posts: 9,990
Default RE: How To: Repin your harness

Your lucky I did this for everyone lol

[align=center]Wiring a P series VAM into a 88-90 Mustang
(this is for when your doing a 2.3 turbo swap with a computer other than a LA, LB, 8UA series)



[/align]Splice into/”T’’ connect the VRef (orange/white) to the wire going to pin 26 of the stock harness (also orange/white). (I say splice into/”T” connect the wire running into the engine bay. This is because pin 26 is being used by the TPS, MAP, and EGR.)




Remove Pin Connector #3 from LX wire harness red block (or take one from your harness you salvaged, and put this pin connector and wire into the red block of your LX harness to plug into your Pin 43 position on the P series computer. The LX harness lacks this connecting pin).



Connect the VAF (white/black) to the wire going to pin 43 of the stock harness (the new connecting pin you just put in)




Connect the VAT (vain air temp) to pin connector #27 (this can be found at your EGR Valve position sensor) Now move that pin #27 to pin #25 and move #25 to an area with no pin (this is the ACT sensor which only the PE, and 87-88 turbo coupe computers can use)




Splice into/"T" connect the VAM signal return (black/white) wire into the LX harness (black/white) wire that goes to pin 46. Do not cut the LX harness (black/white) wire going into pin 46, simply connect this VAM signal return black/white wire to it.
__________________
1988 Mustang LX
Ex 2.3 N/A car, built 2.3 turbo with LOTS of goodies! now I gotta find a rear end and a ps/pump XD

1989 Ranger STX 4x4
2.9L auto
274,xxx km's
tinted windows, 2 - 12" kicker comps with a 400.1X at 500watts
sleeper_inc is offline   Reply With Quote
Old 04-23-2008, 09:07 PM   #14
Stang2.3
4th Gear Member

Stang2.3's Avatar

Join Date: Jul 2007
Vehicle: 1989 Mazda Rx7 , 1984 Mustang GT 5.0
Location: Salt Lake City Utah
Posts: 1,342
redsunsfc X1308cc DoritoX
Send a message via MSN to Stang2.3
Default RE: How To: Repin your harness

ya i've got that copy'd and i did that. makes 4 wires... or am i readin wrong?
__________________
Jake Bastian
1989 Mazda FC3S N/A *Under Construction*
1985 Ford Mustang GT 5.0 *Daily Driver*
Stang2.3 is offline   Reply With Quote
Old 04-23-2008, 09:19 PM   #15
sleeper_inc
6th Gear Member

sleeper_inc's Avatar

Join Date: Sep 2006
Vehicle: 1988, Mustang, LX
Location: Regina Beach, Sask
Posts: 9,990
Default RE: How To: Repin your harness

move 4, t into2, and cross fingers and hope it works
__________________
1988 Mustang LX
Ex 2.3 N/A car, built 2.3 turbo with LOTS of goodies! now I gotta find a rear end and a ps/pump XD

1989 Ranger STX 4x4
2.9L auto
274,xxx km's
tinted windows, 2 - 12" kicker comps with a 400.1X at 500watts
sleeper_inc is offline   Reply With Quote
Old 04-23-2008, 09:37 PM   #16
Stang2.3
4th Gear Member

Stang2.3's Avatar

Join Date: Jul 2007
Vehicle: 1989 Mazda Rx7 , 1984 Mustang GT 5.0
Location: Salt Lake City Utah
Posts: 1,342
redsunsfc X1308cc DoritoX
Send a message via MSN to Stang2.3
Default RE: How To: Repin your harness

okay then its done..... just gotta hook everything up and tryin and turn her over

and find my vam.....
__________________
Jake Bastian
1989 Mazda FC3S N/A *Under Construction*
1985 Ford Mustang GT 5.0 *Daily Driver*
Stang2.3 is offline   Reply With Quote
Old 01-14-2012, 01:33 PM   #17
23 bears

Join Date: Oct 2011
Vehicle: 93 mustang lx 2.3
Location: illinois
Posts: 21
Default help

is this the same for a 93 mustang cuz im puting in a 88 tc motor
23 bears is offline   Reply With Quote
Old 01-27-2012, 07:54 PM   #18
mg man 75
5th Gear Member

Join Date: Oct 2006
Vehicle: 1989 Mustang LX
Location: Kentucky
Posts: 2,171
Default

93 is differant. This is site for the 93 notice Sleepers is for 88-90.
I read your closed thread. If you didn't find the info.
1st Read this site and reread many have messed up on it.
http://www.stinger-performance.com/turboswap.html
It is not difficult just read and reread. Most problems occur with "T" wires. This means you take a wire and splice into it another wire. You wind up with 3 wires connected. NOT 2 wires together and a loose one. Good luck. Maurice
__________________
89 mustang 86 2.3turbo motor c-4 trans http://www.fquick.com/89-2.3turbo http://s177.photobucket.com/albums/w...20converiable/
mg man 75 is offline   Reply With Quote
Old 11-23-2014, 10:42 AM   #19
shotnva777

Join Date: Nov 2014
Vehicle: 1986 Mustang SVO
Location: Virginia
Posts: 1
Default ???

This makes ZERO sense to me???

All I see is 4 wires. The black one is connected (T'd into) a wire in the harness and the rest of the wires do what???

It doesn't show where to connect on either end of the 3 wires?! Am I missing something???
shotnva777 is offline   Reply With Quote
Old 11-23-2014, 10:42 AM
MustangForums
Ford Mustang




Paid Advertisement




Reply

Tags
23, body, computer, cut, fox, harness, pin, repin, repinning, repintool, sn95, turbo, wire, wires, wiring

Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off

Forum Jump

Similar Threads
Thread Thread Starter Forum Replies Last Post
How to turbo your normally aspirated 2.3L. evintho 4 Cylinder NA and Turbo 35 03-17-2014 08:25 PM
how much hp? mopman93 4 Cylinder NA and Turbo 10 02-03-2007 12:46 AM

Advertising

Featured Sponsors
Vendor Directory
New Sponsors
All times are GMT -5. The time now is 05:05 PM.

Internet Brands, Inc.


This forum is owned and operated by Internet Brands, Inc., a Delaware corporation. It is not authorized or endorsed by the Ford Motor Company and is not affiliated with the Ford Motor Company or its related companies in any way. Ford is a registered trademark of the Ford Motor Company
Emails Backup
