Old 07-24-2007, 05:39 PM   #1
Soaring
I ♥ Acer

Join Date: Oct 2004
Location:
Posts: 17,565
Default Here's a picture of my engine bay, where is yours?

Since there is an interest in having a thread on top to show off our engine bays, I think we should make some basic rules. 1. Try to get the best shot of your engine bay as you can. 2. List what you have. In other words which engine, which uprades if any etc. We will pin this to the top so that everyone on here can see pics of our engine bays and ask the owners questions about how they achieved the performance and look that they did. This is just for engine bays. We already have a pin for the whole cars.
Here's mine to start.
1965 289 C code basically stock with a shroud, Monte Carlo bar, Export brace and radiator overflow tank.
Click the image to open in full size.
This ad is not displayed to registered or logged-in members.
Register your free account today and become a member on Mustang Forums!
Soaring is offline   Reply With Quote
Old 07-24-2007, 06:38 PM   #2
4reboy
5th Gear Member

4reboy's Avatar

Join Date: Jul 2006
Vehicle: 1969 Mach1
Location: San Diego, CA
Posts: 2,990
Default RE: Here's a picture of my engine bay, where is yours?

I'll contribute. I posted these in the last engine bay thread.

Bay - stripped and sandblasted, etching primer, laquer primer, then a semi-flat black. (sprayed with HVLP gun, not a rattle can)
Engine - rebuilt 351w (original to car), bored .04 over. Edelbrock performer intake with edelbrock 650 cfm carb (electric choke), plus a high volume aluminum water pump. I put an export brace on, and eventually a monte carlo bar. Also have a stock style 3-row radiator rather than the original 2-row. Oh I aslo have a 100 amp alternator. EDIT, forgot, also have MSD 8.5mm spark plug wires, new cap and rotor, and pertronix ignition (now blown )

Click the image to open in full size.

Click the image to open in full size.

__________________
1969 Winter Blue Mach 1 M-code


Classic ROTM 2009 winner thanks everybody
4reboy is offline   Reply With Quote
Old 07-24-2007, 06:44 PM   #3
Aussie66Fastback
5th Gear Member

Aussie66Fastback's Avatar

Join Date: Sep 2006
Vehicle: 1966 2+2
Location: Australia
Posts: 2,266
Default RE: Here's a picture of my engine bay, where is yours?


cool idea. here's mine
302, mild cam, p and p 351 heads, holley 600 vac sec, roller rockers, tri-y to twin 2 1/4 with H, electronic ignition. Since the photo was taken, I have put std rocker covers back on, hipo 289 aircleaner to make it look like a factory motor to the uneducated

[IMG]local://upfiles/48146/587D639319E04B28875563983C44B76D.jpg[/IMG]
__________________
Quote:
A 2007 study found on average Australians walk 900 miles a year. We drink 26 gallons of beer. That means, on average, Australians get about 34 miles per gallon.
Not bad hey!
Aussie66Fastback is offline   Reply With Quote
Old 07-24-2007, 07:11 PM   #4
ndnboy
3rd Gear Member


ndnboy's Avatar

Join Date: Feb 2007
Location: MD (transplant from NYC)
Posts: 619
Default RE: Here's a picture of my engine bay, where is yours?

Here is mine:

Stock 289, 4V, Electronic Ignition, chrome Monte Carlo Bar, chrome Air/valve cover dress up kit, dual master cylinder, 3 row radiator

[IMG]local://upfiles/62235/4E264656262848628B589D01D7F793C7.jpg[/IMG]
__________________

1966 Mustang Coupe, "Cruiser", Stock 289, 4v, 40 Flows
2007 Mustang V6 , "Daily Driver" Stock Red fire, Pony Package
http://www.mdpatriotstangs.com/
"9-11-01"
ndnboy is offline   Reply With Quote
Old 07-24-2007, 07:40 PM   #5
bluovalguy
4th Gear Member

bluovalguy's Avatar

Join Date: Mar 2007
Vehicle: 09 GT 5 spd
Location: Portland, OR
Posts: 1,710
Default RE: Here's a picture of my engine bay, where is yours?

Some dirt, alittle rust, MSD Dizzy, MSD Wires, Mallory Promaster Coil, Edelbrock 600 cfm, Edelbrock Performer RPM manifold, Hooker full length headers, a couple randomly placed zip strips, and a air cleaner decal that is pealing off


Click the image to open in full size.
__________________
It is better to be judged by 12 than carried by 6.

bluovalguy is offline   Reply With Quote
Old 07-24-2007, 09:23 PM   #6
dodgestang
5th Gear Member


Join Date: Nov 2004
Vehicle: 1965, Mustang, Fastback
Location: Insanity
Posts: 2,138
Default RE: Here's a picture of my engine bay, where is yours?

Click the image to open in full size.
__________________
Nick
65FB 408c AOD-68FB 351w T5-67FB 302 FMX


11.521 at 118.85 (Best ET to date 11.26 at 121.06)
http://www.youtube.com/watch?v=c60rI5RWnJw
dodgestang is offline   Reply With Quote
Old 07-24-2007, 09:29 PM   #7
mustanglover66
4th Gear Member

mustanglover66's Avatar

Join Date: Mar 2006
Vehicle: 66 fastback
Location: Concord, NC
Posts: 1,261
Default RE: Here's a picture of my engine bay, where is yours?

I'll play along. MSD 6AL, MSD Dist. with 9mm ford raceing wires on a worn out 302 with holley 600 4V and edelbrock Performer intake. Of course all of which about to be pulled out soon.

[IMG]local://upfiles/33399/8E566A15794A4C2B93C9B6AC8A86A635.jpg[/IMG]

[IMG]local://upfiles/33399/559E3A2F96B84AF1AB7DE0AB3DA2E8D1.jpg[/IMG]
__________________
66 Fastback, 68 302, MSD with 6AL, 600 Holley, Grab-a-trac performance package, 6 banger to V8 converted
mustanglover66 is offline   Reply With Quote
Old 07-24-2007, 10:33 PM   #8
68EFIvert
3rd Gear Member

Join Date: Jan 2007
Vehicle: 1968 Mustang Convertible
Location: Washington
Posts: 682
Default RE: Here's a picture of my engine bay, where is yours?

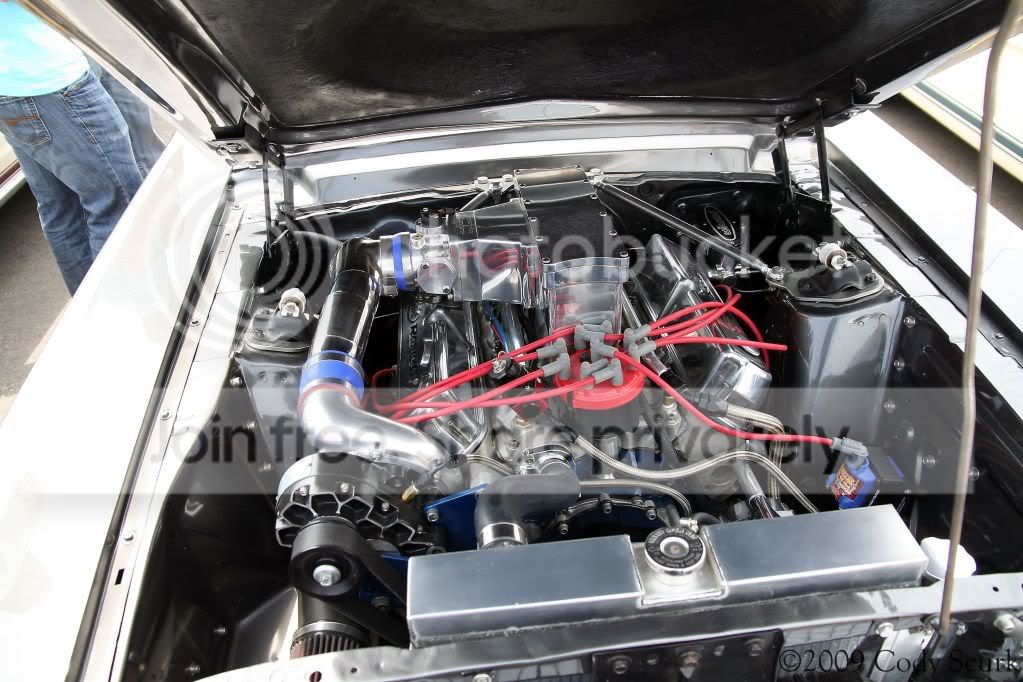

302 bord 30 over, E303 cam, forged pistons with balanced rotating assembly, Ford aluminum heads, C&L MAF and inlet, 24 lb injectors, 1.7 rr, Professional Products Intake, March pulleys and brackets, Northern Radiator and an export brace I made from flat stock and hex aluminum rod. Oh and lots of bondo dust. I'll take care of cleaning after it is painted.
Click the image to open in full size.
__________________
Darreld
http://www.youtube.com/watch?v=zrqA9...ature=related#


68 Convertible with supercharged 333 EFI, 555 rwhp 486 rwtq, TW FAC 190 heads, Jay Allen Cam, T56 6 spd, Cobra Disc brakes, Steeroids Rack, Ron Morris Front Coil over up front, TCP G-Bar rear suspension, custom interior and HOK Kandy Brandywine paint.
68EFIvert is offline   Reply With Quote
Old 07-24-2007, 11:01 PM   #9
LCC
4th Gear Member

LCC's Avatar

Join Date: Oct 2006
Vehicle: 68 Fastback, J code
Location: Canada
Posts: 1,443
Default RE: Here's a picture of my engine bay, where is yours?

Here's my old 351C, not in it right now


New 351W
__________________
68 Mustang Fastback
Lentech AOD, 357 SBF, Vortec S/C, F.A.S.T. EFI


NEVER DRIVE FASTER THEN YOUR GURDIAN ANGEL CAN FLY...

Last edited by LCC; 06-19-2013 at 12:32 PM.
LCC is offline   Reply With Quote
Old 07-25-2007, 12:10 AM   #10
66JameStang
4th Gear Member


66JameStang's Avatar

Join Date: Jan 2007
Vehicle: 1966, Ford, Mustang
Location: New Mexico
Posts: 1,405
Default RE: Here's a picture of my engine bay, where is yours?

Car- 66 Mustang- Project- 66JameStang and JMD,

Well I want to give you the overall picture of my engine and bay even though it is not complete yet.
The car started out with an inline 6 and was driven for awhile before my brakes went out. I have since replaced it with a monster. The engine bay took time:

Here is a picture of the engine and bay when I baught the car-

Click the image to open in full size.

It was a rough starting point but it really helped. From here we of coarse started by removing the engine and proceding with clean up. Before really starting I pulled the wiring harness out of the vehicle because I wanted a clean spray through out the car and especailly the bay. After the harness was removed I started scuffing but realized it was going to be a large task. We decided to use aircraft remover to strip the paint and it worked really well.

Click the image to open in full size.

Click the image to open in full size.

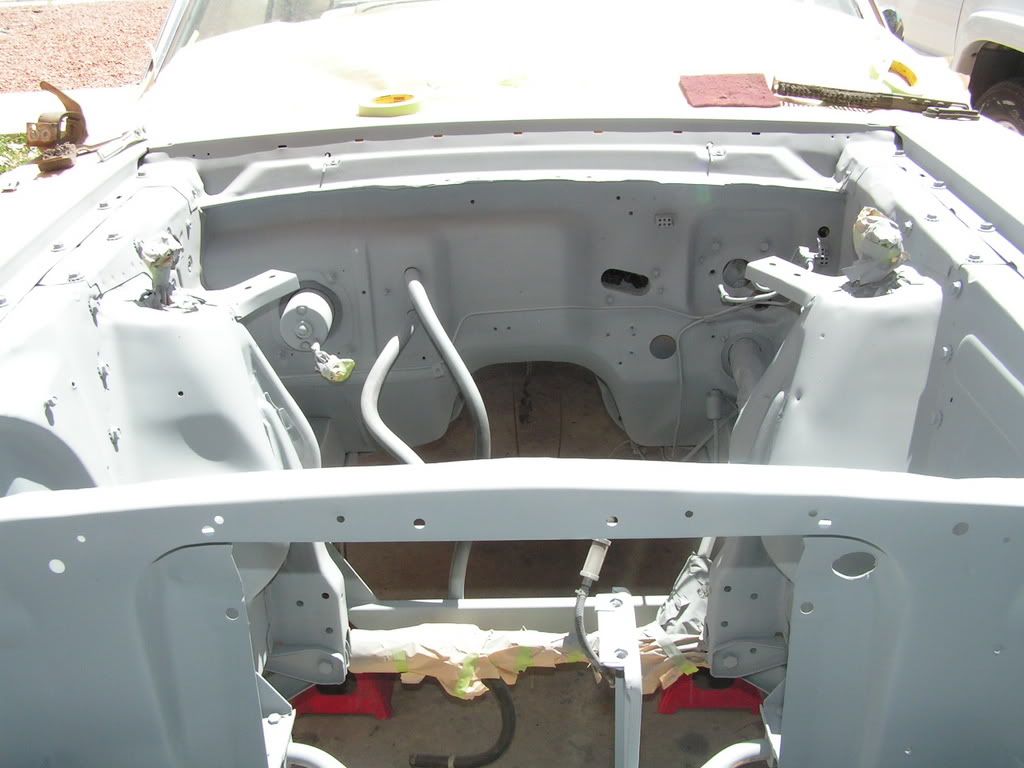

At this point we cleaned it up a bit more and laid down the primer..

Click the image to open in full size.

Click the image to open in full size.

I don't have a picture but we purchased bed liner and laid it down in most of the engine compartment and added texture. The bed liner was black but the paint laid downnice on top of it. We used single stage dupontpaint.

Click the image to open in full size.

Click the image to open in full size.

The engine that was built for this car was built from the ground up.
Engine- 351 Windsor- Tore down- came from 1970 LTD
Exhaust manifold- Victor Jr
Intake Manifold- Edlebrock Air Gap
Forged Crank and pistons
H-Beam rods
Stroked to 408
Cam-
Carburater- Demon
Roller Lifters
Distributer- Mallory

Click the image to open in full size.

Painted the block silver the same silver as the bay.
Click the image to open in full size.

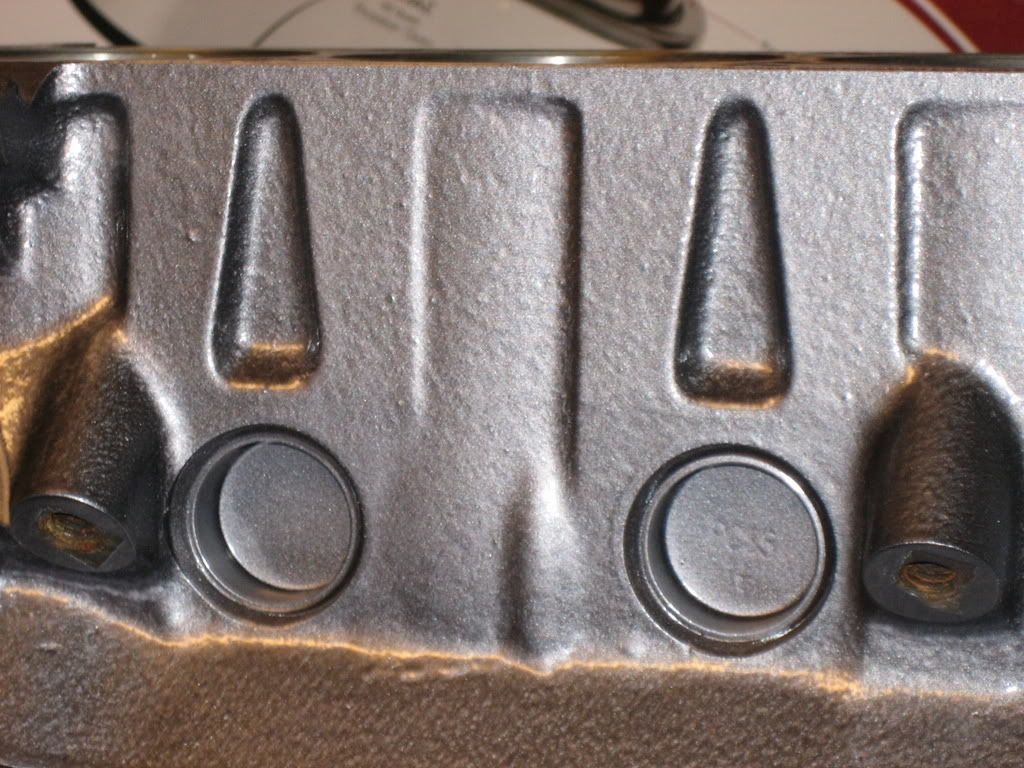

The oil pan has been changed because it was too small for new internals
Click the image to open in full size.

Click the image to open in full size.

It is still not finished yet but it is coming along the wires are not where They are gonna be yet and some things still needto be moved around. I will post more as we finish it.
Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.


Click the image to open in full size.

Last edited by 66JameStang; 01-20-2009 at 11:46 AM.
