Old 01-08-2007, 07:42 PM   #1
8cd03gro
5th Gear Member

Join Date: Mar 2006
Vehicle: 2005 STi
Location: CO
Posts: 3,100
Default Timing chain rattle?

hmmm i was on the ranger forums and it seems ALOT of them have problems with timing chain rattle and they said it just gets louder and louder...i have this odd rattle between 2400-3000 rpm's but it is pretty quiet and i didn't think anything of it...since they use basically the same motor in the sohc equipped ones, i was wondering if anyone had that rattle here and if they think that could be what it was. not really urgent, but some say it is so loud they can hear it outside of the car which i dont want.
This ad is not displayed to registered or logged-in members.
Register your free account today and become a member on Mustang Forums!
__________________
2005 World Rally Blue STi | 295awhp/333awtq dyno dynamics | 3100 lbs wet | KW v3 coilovers
8cd03gro is offline   Reply With Quote
Old 01-08-2007, 07:53 PM   #2
blackfoot
4th Gear Member

Join Date: Feb 2006
Location:
Posts: 1,799
Default RE: Timing chain rattle?

i know our injectors our loud as all hell.. when i pop the hood, thats all i hear.. tick tick tick tick tick tick tick
__________________
05 V6 black,std, red int
fidanza lightweight flywheel
centerforce dual friction clutch
hurst short throw
steel breaided brake lines
GT front brakes and front sway bar
CDC black billet grill
Spyn ZX rims
C&L intake and SCT tune
BBK X-pipe
xenon rear window scoops
eibach pro-kit
Dual GT take offs

1970 convertible, 460 SCJ ( yeah I said 460 scj) and lots of other goodies
blackfoot is offline   Reply With Quote
Old 01-08-2007, 08:07 PM   #3
ilduce321
2nd Gear Member

Join Date: Apr 2006
Vehicle: 2006 Ford Mustang V6
Location: Naugatuck, CT
Posts: 485
@docwilly2011
Default RE: Timing chain rattle?

Do we have timing chains or timing belts? Not starting an argument here, I honestly don't know.
__________________
X-Charger #20 - 294rwhp/306rwtq 9psi - oh how I miss you

C&L CAI
CHE Tubular LCAs
PH driveshaft
MRT AeroTurbine MuffleR
Ford 7.5" T-LOK
Shelby GT500 take-off wheels & tires
SSM built 4.0 shortblock
SSM Stage 3 superheads and cams
Zabteck Throttle Body
Prothane motor mounts
SPEC Stage 2+ clutch
Tune by Jannetty Racing
ilduce321 is offline   Reply With Quote
Old 01-08-2007, 08:16 PM   #4
05 Cayuse
2nd Gear Member

Join Date: Dec 2005
Location:
Posts: 465
Default RE: Timing chain rattle?

Our 4.0L V6 has three timing chains. One main one and two extras the engineers thought we could use. (Sorry Scrming, I couldn't help myself).
__________________

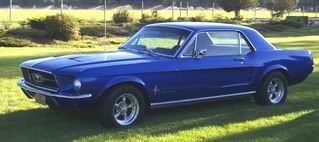

My good ol' 67 coupe powered by a fresh 347 Stroker! Old school fun at a fraction of new car parts prices.
05 Cayuse is offline   Reply With Quote
Old 01-08-2007, 09:32 PM   #5
NickSezz
4th Gear Member

Join Date: May 2006
Location: Nutley NJ
Posts: 1,207
Default RE: Timing chain rattle?

I dont get it? haha

Quote:
ORIGINAL: 05 Cayuse

Our 4.0L V6 has three timing chains. One main one and two extras the engineers thought we could use. (Sorry Scrming, I couldn't help myself).
__________________
HIPO2.8 XCHARGER # 027 ~Reborn~
...All go no show SLEEPER...
2005 V6 Red Fire 5-Speed (sport pack) *sold*
DynoJet: 307rwhp 318rwtq

2012 GT Kona Blue/Charcoal MT-82
GT500 Cans, BAMA 93 Race, Steeda CAI, JLT Can
NickSezz is offline   Reply With Quote
Old 01-08-2007, 09:58 PM   #6
blackfoot
4th Gear Member

Join Date: Feb 2006
Location:
Posts: 1,799
Default RE: Timing chain rattle?

there is a sproket from the crankshaft that goes to a sproket at the top of the V (bottom arrow), that sproket has 2 other sprokets splined to it and they drive the camshaft at the top of the heads (top arrow)


Click the image to open in full size.

lol i know the picture has a chain all clumped up at the bottom...
__________________
05 V6 black,std, red int
fidanza lightweight flywheel
centerforce dual friction clutch
hurst short throw
steel breaided brake lines
GT front brakes and front sway bar
CDC black billet grill
Spyn ZX rims
C&L intake and SCT tune
BBK X-pipe
xenon rear window scoops
eibach pro-kit
Dual GT take offs

1970 convertible, 460 SCJ ( yeah I said 460 scj) and lots of other goodies
blackfoot is offline   Reply With Quote
Old 01-08-2007, 10:04 PM   #7
05 Cayuse
2nd Gear Member

Join Date: Dec 2005
Location:
Posts: 465
Default RE: Timing chain rattle?

Nicksezz - I ruffled a few feathers yesterday when I voiced my concern about our V6's "overly complicated" design with three timing chains possibly making it more fragile under extreme use. I know better now than to go against forum concensus. LOL!
__________________

My good ol' 67 coupe powered by a fresh 347 Stroker! Old school fun at a fraction of new car parts prices.
05 Cayuse is offline   Reply With Quote
Old 01-08-2007, 10:11 PM   #8
BHRS
1st Gear Member

Join Date: Sep 2006
Location:
Posts: 119
Default RE: Timing chain rattle?

Quote:
ORIGINAL: 05 Cayuse

Nicksezz - I ruffled a few feathers yesterday when I voiced my concern about our V6's "overly complicated" design with three timing chains possibly making it more fragile under extreme use. I know better now than to go against forum concensus. LOL!
Do you have any facts to backup the "fragile" theory?

So the popping noise is from the injectors-I thought it was valvetrain related...
__________________
I am not originally from Texas or a Ford owner, but I got here as fast as I could!!!

'07 Premium Coupe
4.0 V6 Auto
Pony Package
Vista Blue/Light Graphite Cloth
Magnaflow Axle Back-SOUNDS GOOD!!!
BHRS is offline   Reply With Quote
Old 01-08-2007, 11:07 PM   #9
rygenstormlocke
6th Gear Member

rygenstormlocke's Avatar

Join Date: Jul 2005
Posts: 5,173
Send a message via AIM to rygenstormlocke Send a message via Yahoo to rygenstormlocke
Default RE: Timing chain rattle?

Quote:
ORIGINAL: 05 Cayuse

Nicksezz - I ruffled a few feathers yesterday when I voiced my concern about our V6's "overly complicated" design with three timing chains possibly making it more fragile under extreme use. I know better now than to go against forum concensus. LOL!
Nothing wrong with bringing it up. It is a valid concern, but no more than our ****ty *** pistons. Just something we have to accept.
__________________
Quote of the moment: "Well, we're not just gonna let you walk out of here?" - "Who's we sucker?" -- "Smith and Wesson and me."

sig by FATW

www.powerhouse411.com
www.excmotorsport.com


Best 1/4: 10.97@122.09, 1.56 60ft w/4.0 V6
Best 1/4: 10.80@124.52, 1.55 60ft w/5.4 V8
rygenstormlocke is offline   Reply With Quote
Old 01-08-2007, 11:17 PM   #10
fazm
5th Gear Member


Join Date: Mar 2006
Location: arizona
Posts: 3,893
Send a message via AIM to fazm Send a message via Yahoo to fazm
Default RE: Timing chain rattle?

this problem was fixed over 3 years ago, it effected all SOHC 4.0s, not just in the rangers.

the problem was the front tensioner kept bleeding off oil (they are oil pressure driven tensioners) so u would get timing chain rattle. in 2003 they redesigned the chain tensioner, and no problems since then that i know of. there is actually many tsb's out there for them.

ive replaced 2 of these at my shop, not too much work involved
__________________
Old car turbo 2005 v6 over 400rwhp
New car slow 2011 v6 stock
fazm is offline   Reply With Quote
