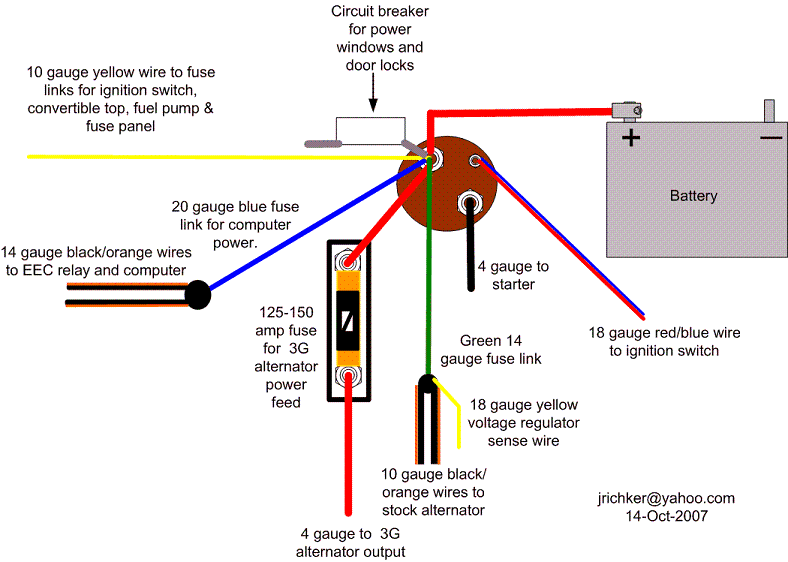

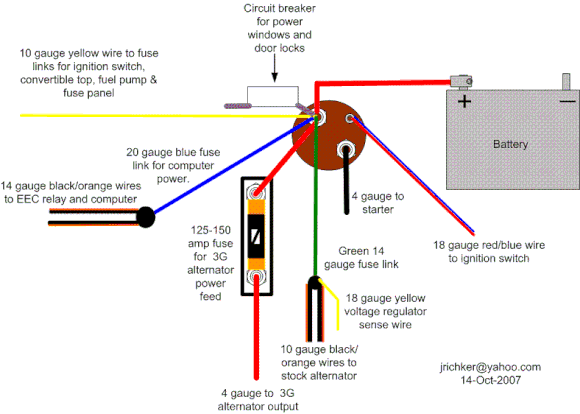

Ignore the clocked position of the solenoid shown in the diagram.Just look for the large post with one 4ga cable attached to it and thats your starter cable.
Vote
Enlarge | Flag Picture

Also In This Album

My Post Pictures (25) »
wbrockstar May 6, 2020
Ignore the clocked position of the solenoid shown in the diagram.Just look for the large post with one 4ga cable attached to it and thats your starter cable.
