Old 05-13-2007, 07:07 PM   #1
rouge67
1st Gear Member

rouge67's Avatar

Join Date: Oct 2005
Vehicle: Mustang HT 1967
Location: France
Posts: 54
Default Build sheet decoding

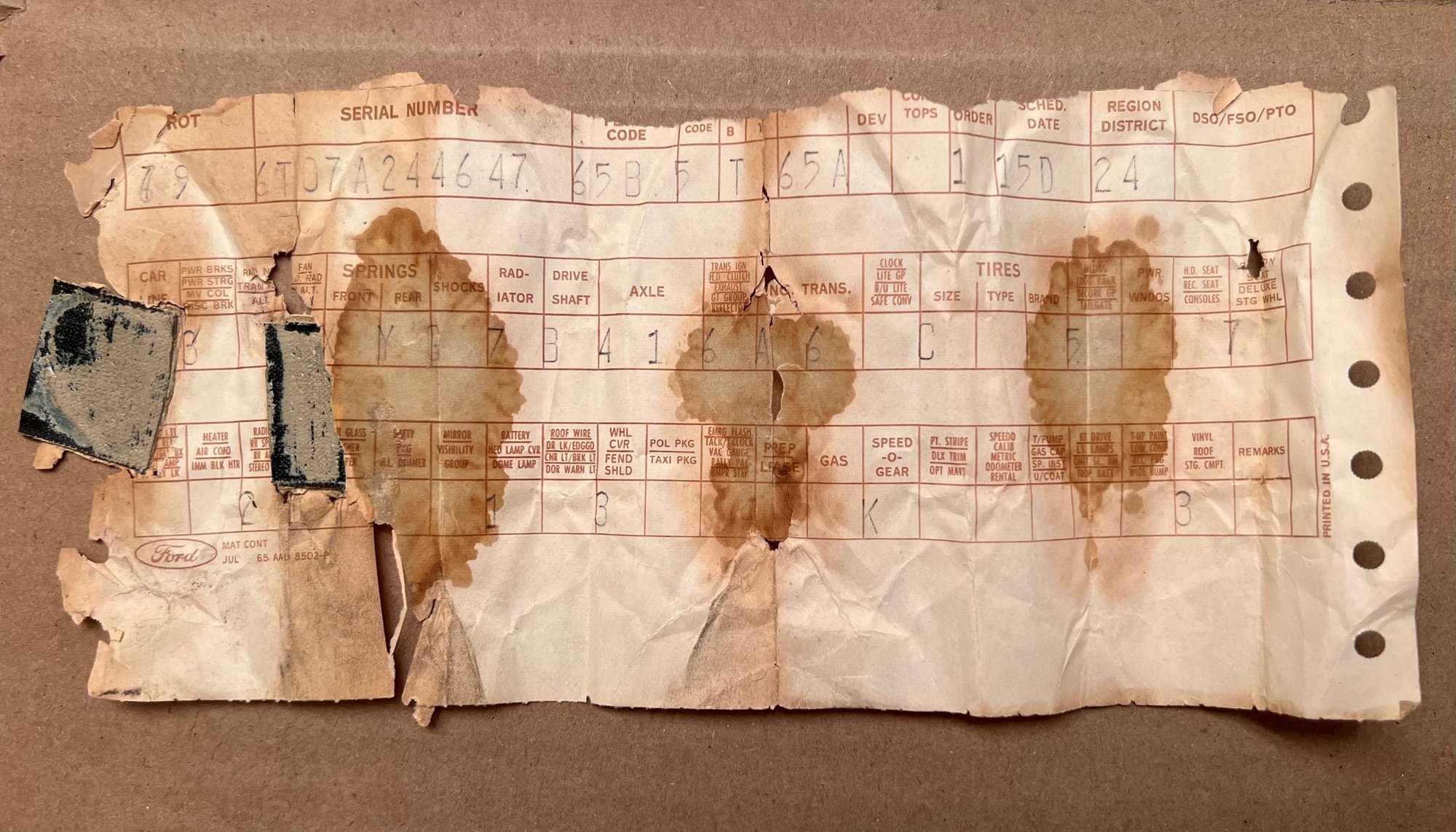

Can anybody decode this sheet ? Thanks.
Click the image to open in full size.
This ad is not displayed to registered or logged-in members.
Register your free account today and become a member on Mustang Forums!
__________________
'67 Red HT
rouge67 is offline   Reply With Quote
Old 05-13-2007, 08:03 PM   #2
Soaring
I ♥ Acer

Join Date: Oct 2004
Location:
Posts: 17,565
Default RE: Build sheet decoding

Well, I'll do the best I can for what I can read. This build sheet is in pretty good shape, but there are a lot of numbers that are illegible.
It's a 66 A code , 4 speed manual that was colored Ivy Green Metallic, built in Octover of 1965. It was built at the Metuchen, NJ plant, the speedometer gear is G, and it was equipped with an export suspension and a special handkling package.
Maybe some of the other guys with younger eyes can fill in the blanks. It was special ordered unit 01.
I am confused about the convertible top "S". Is this car a vert?
Soaring is offline   Reply With Quote
Old 05-15-2007, 04:32 AM   #3
Aussie66Fastback
5th Gear Member

Aussie66Fastback's Avatar

Join Date: Sep 2006
Vehicle: 1966 2+2
Location: Australia
Posts: 2,266
Default RE: Build sheet decoding

08 before the A in the serial number signifies a vert
76B is a luxury interior vert
F9 intererior = parchment/ palomino luxury trim

Axle 6 A doesnt make sense
6 = 2.8:1 open wheeler. A = 3.00:1 limited slip.

def A code 289, 4 spd, 25 Oct build.

the region/ district 95 means it was an export car...hence the export suspension.
the special handling package was also standard on the export cars and includedincreased rate front and rear springs, heavier front sway barand (correct me if i'm wrong) front disc brakes. So the build sheet is actually for a T5 vert!!! (T5 was what they called the european export cars as there was already a company called Mustangs and Ford could not reach an agreement over use of the name with them)

that wouldbe a valuable document to the cars owner. 66 data was destroyed and that is the only way to verify what the car was actually produced as from new.

__________________
Quote:
A 2007 study found on average Australians walk 900 miles a year. We drink 26 gallons of beer. That means, on average, Australians get about 34 miles per gallon.
Not bad hey!
Aussie66Fastback is offline   Reply With Quote
Old 05-18-2007, 07:08 PM   #4
rouge67
1st Gear Member

rouge67's Avatar

Join Date: Oct 2005
Vehicle: Mustang HT 1967
Location: France
Posts: 54
Default RE: Build sheet decoding

Quote:
ORIGINAL: Aussie66Fastback

...So the build sheet is actually for a T5 vert!!! (T5 was what they called the european export cars as there was already a company called Mustangs and Ford could not reach an agreement over use of the name with them)
Right, but only for the West Germany, in others European countries the Mustang was called... Mustang !
__________________
'67 Red HT
rouge67 is offline   Reply With Quote
Old 05-18-2007, 07:24 PM   #5
Soaring
I ♥ Acer

Join Date: Oct 2004
Location:
Posts: 17,565
Default RE: Build sheet decoding

Quote:
ORIGINAL: rouge67

Quote:
ORIGINAL: Aussie66Fastback

...So the build sheet is actually for a T5 vert!!! (T5 was what they called the european export cars as there was already a company called Mustangs and Ford could not reach an agreement over use of the name with them)
Right, but only for the West Germany, in others European countries the Mustang was called... Mustang !
Yes, that's my understanding too. It was the Germans who already had something called the Mustang.
Soaring is offline   Reply With Quote
Old 05-26-2007, 01:52 AM   #6
haskett

Join Date: Nov 2006
Posts: 4
Default RE: Build sheet decoding

Here's one more.

I enhanced the text to make it easier to read.

Click the image to open in full size.
haskett is offline   Reply With Quote
Old 05-26-2007, 02:02 AM   #7
Soaring
I ♥ Acer

Join Date: Oct 2004
Location:
Posts: 17,565
Default RE: Build sheet decoding


The black letters are obviously more clear but the red designation of what those letters represent are not clear.
Soaring is offline   Reply With Quote
Old 01-05-2008, 02:56 PM   #8
66FastbackGT_T5

Join Date: Nov 2007
Posts: 31
Default RE: Build sheet decoding

Hi!

Today i find my Buildsheet in my dashboard.

Good thing: It is there and to read

Bad thing: The Mechanic wraps it with tape around some cables so its destroyed

This is what i can read:

Warranty Plant Code 63D
Colour Code: D
Scheduled date : 20J
Region District: 95

Next Field (Top is Missing): 01
CarLine (Cant read exact) : Z or 2
Disc Brakes : 3
Front Spring : X
Rear Spring: Z or 7
Radiator Y
Drive Shaft M
Axle 6 ? A
Engine : 6 (Maybe)
Trans : 5
Tires Size C Type 3 Brand 1
Moldings or other : 5
Options Seat : 5
Battery : 1
Gas : 0
Speed o gear G
Speed Calib metric Odo Rental : 2
/F/Pump gas Cap 5
t-Up Paint 5
Remarks 2

I Forget: In the base of the sheet the words Special handling Paackage are to read

Car is a 1966 GT Fastback T5 European Model ManualSpeed with Ralley Pack and Ralley stearing wheel

And some rust, mieces and other dirt

Can anybody help me identify it because Negine / Tranny and doorplate are missing
66FastbackGT_T5 is offline   Reply With Quote
Old 01-06-2008, 07:30 PM   #9
Aussie66Fastback
5th Gear Member

Aussie66Fastback's Avatar

Join Date: Sep 2006
Vehicle: 1966 2+2
Location: Australia
Posts: 2,266
Default RE: Build sheet decoding

Volker - check PM
sorry
__________________
Quote:
A 2007 study found on average Australians walk 900 miles a year. We drink 26 gallons of beer. That means, on average, Australians get about 34 miles per gallon.
Not bad hey!
Aussie66Fastback is offline   Reply With Quote
