Default Rebuilding Rear Calipers

My calipers are painted red, but my car is black with silver pin stripe with silver wheels, so I wanted to paint the calipers silver as well.
After taking it apart I found the left side rear caliper was leaking. I have always wondered how the integrated emergency brake worked, so I went and bought a rebuild kit. I compared the Raybestos kit $15.69 to the centric Kit $5.54 there was no obvious difference between them so I went with the Centric

Rebuilding Rear Calipers-picture-532.jpg

Rebuilding Rear Calipers-picture-531.jpg

I have always heard how difficult they were to work on, surprisingly they are not that difficult. After getting it off the car it took me about 5 minutes to completely disassemble the caliper

Rebuilding Rear Calipers-picture-528.jpg

I have already reassembled it, twice in fact using the old parts I want to get everything painted before putting it together for the last time. I will follow with some pictures putting it back together, waiting for paint to dry if anyone is interested.


Rebuilding Rear Calipers-picture-530.jpg
WJL is offline   Reply With Quote
Old 10-05-2015, 07:55 PM   #2
WJL
2nd Gear Member
Thread Starter

WJL's Avatar

Join Date: Feb 2013
Location: PA
Posts: 414
Default

Although no one seems to be interested heres a somewhat how to guide. I put the whole thing back together and started from the beginning to the complete reassembly.
Rebuilding Rear Calipers-picture-533.jpg

I just ripped the rubber boot off knowing I had a replacement, it made it easier to get the piston out.
Rebuilding Rear Calipers-picture-534.jpg

I removed the piston by turning it counter clockwise, once it gets to the end you will have to pull the piston out.
Rebuilding Rear Calipers-picture-535.jpg

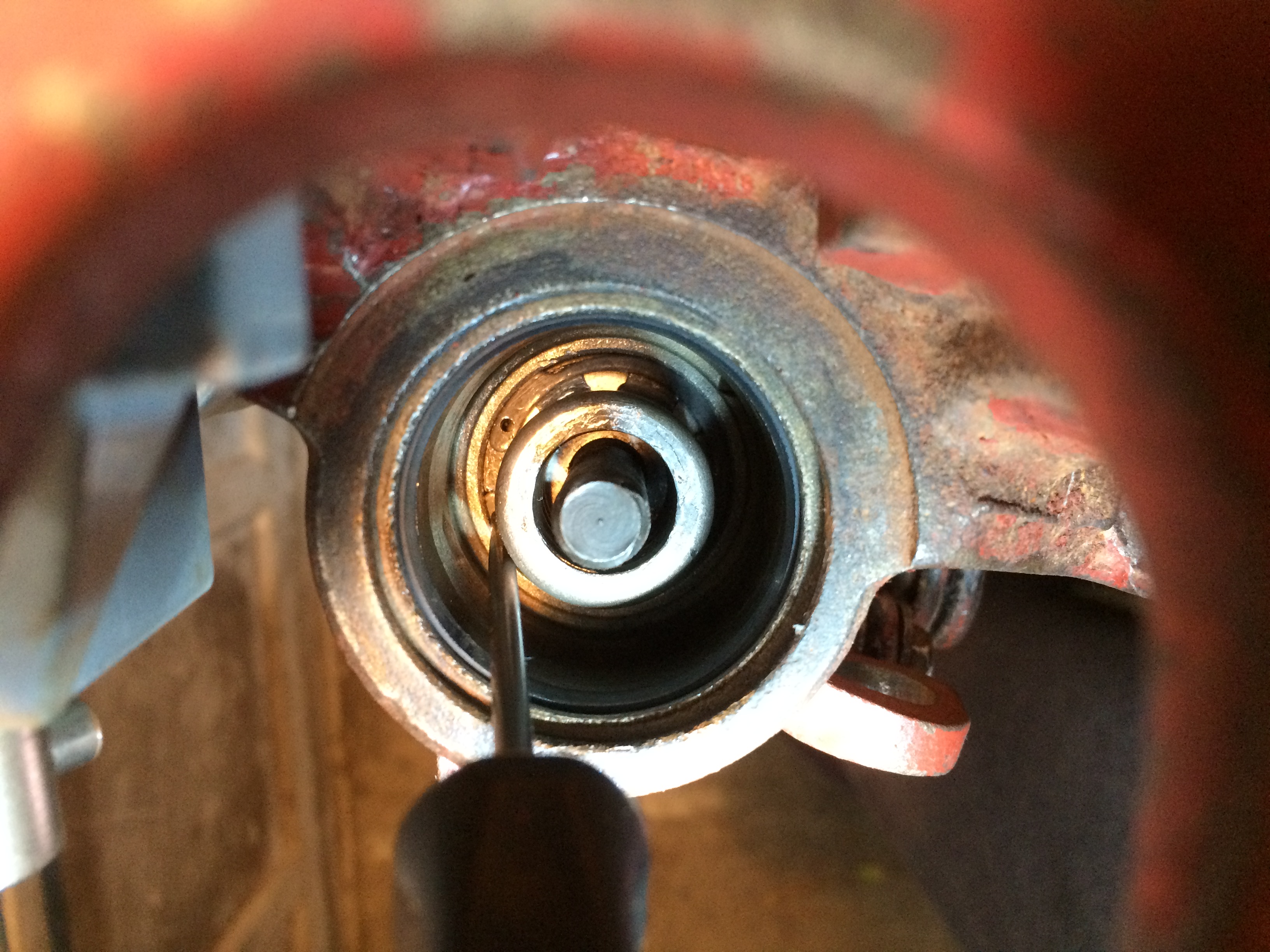

After removing the piston you can look down in the cylinder bore and see the snap ring. I used a pick to get the snap ring out, I just put it in the hole of the snap ring and pried outward and up, really just that easy.
Rebuilding Rear Calipers-picture-536.jpg

This is the pick I used.
Rebuilding Rear Calipers-picture-537.jpg

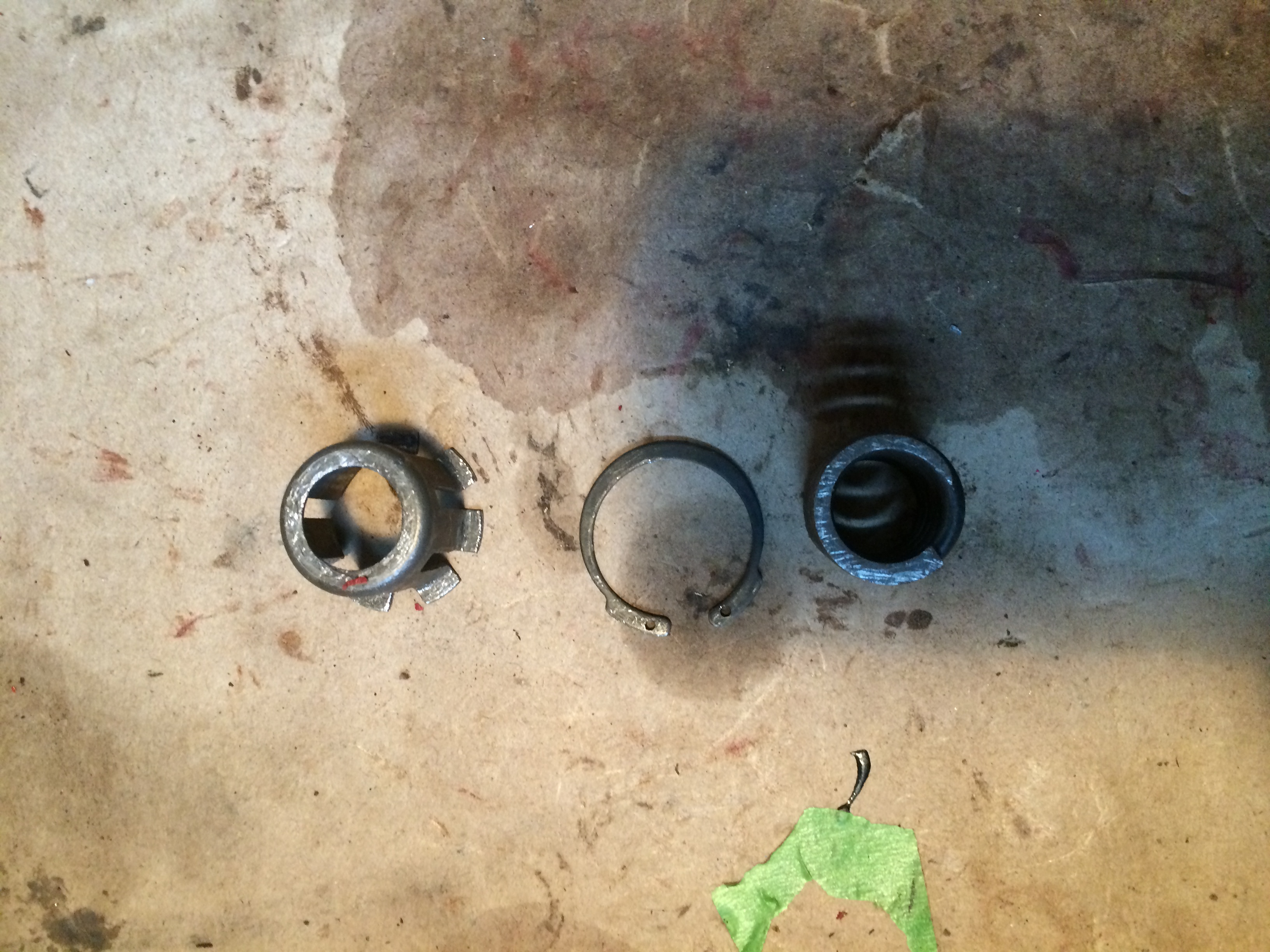

After releasing the snap ring you can pull the spring cage and spring out.
Rebuilding Rear Calipers-picture-538.jpg


Rebuilding Rear Calipers-picture-539.jpg

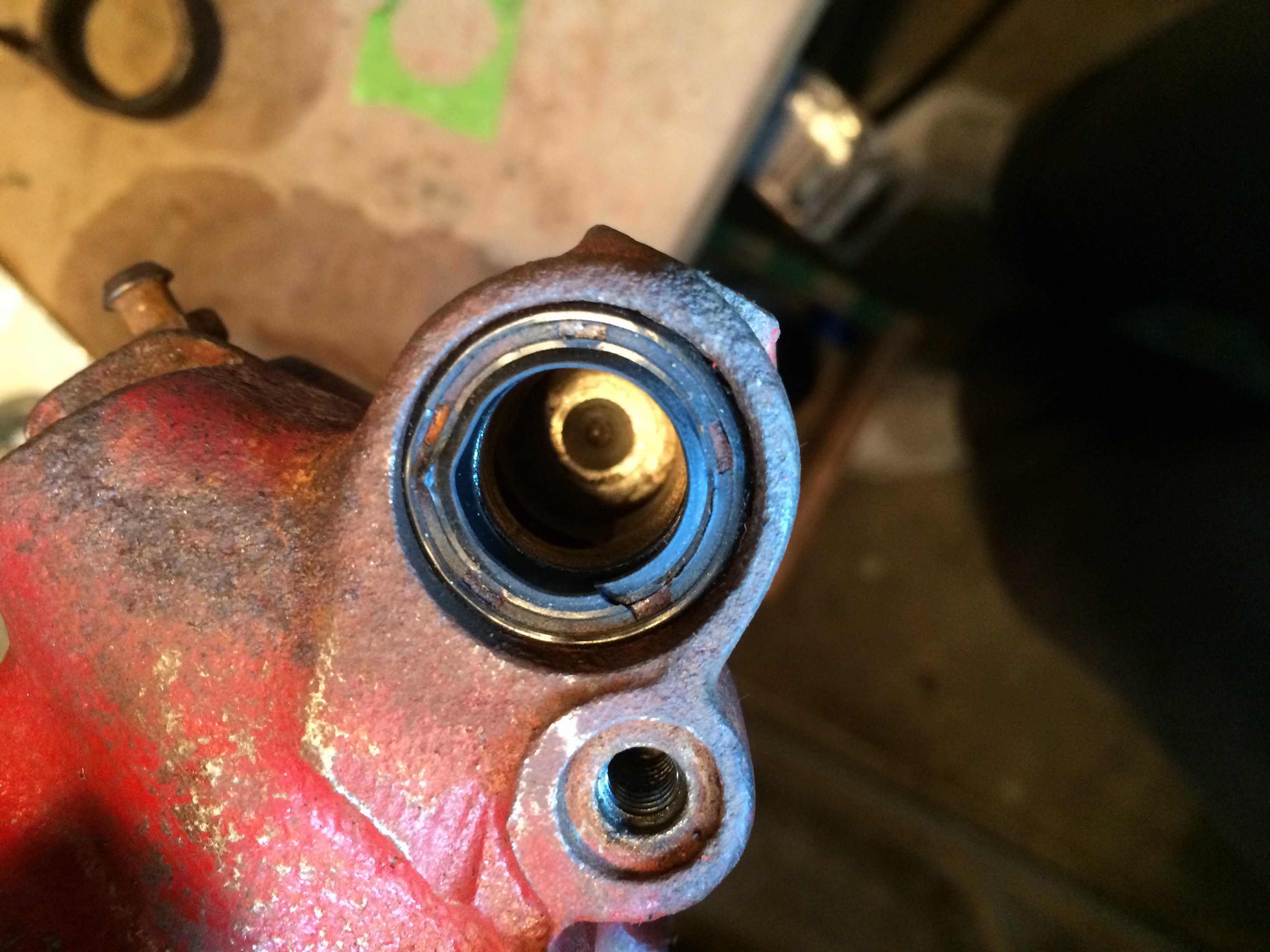

This is what the cylinder bore looks like with the spring and cage removed.
Rebuilding Rear Calipers-picture-541.jpg

I just used a pair of channel locks to take the spring off the emergency brake lever.
Rebuilding Rear Calipers-picture-542.jpg
After taking the spring off I took the threaded road out of the bore. Then I removed the emergency brake lever and seal
Rebuilding Rear Calipers-picture-543.jpg


Rebuilding Rear Calipers-picture-544.jpg


Rebuilding Rear Calipers-picture-545.jpg

Rebuilding Rear Calipers-picture-546.jpg
This o ring is very important it keeps brake fluid from entering the emergency brake housing.
Rebuilding Rear Calipers-picture-547.jpg

Here it is all broken down.
Rebuilding Rear Calipers-picture-550.jpg

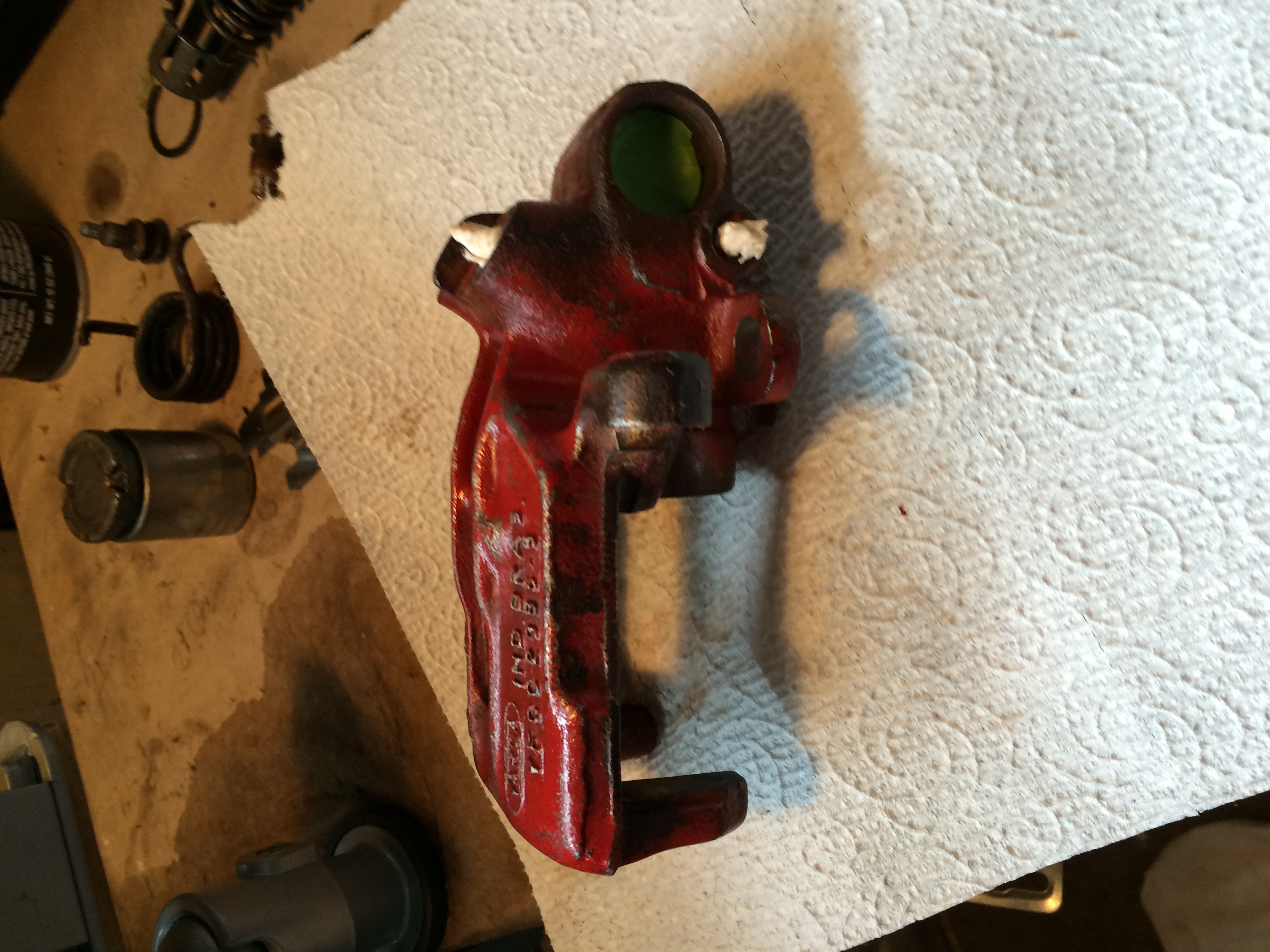

Ready for paint
Rebuilding Rear Calipers-picture-552.jpg
Painted
Rebuilding Rear Calipers-picture-553.jpg
Ready for reassembly.
Rebuilding Rear Calipers-picture-556.jpg

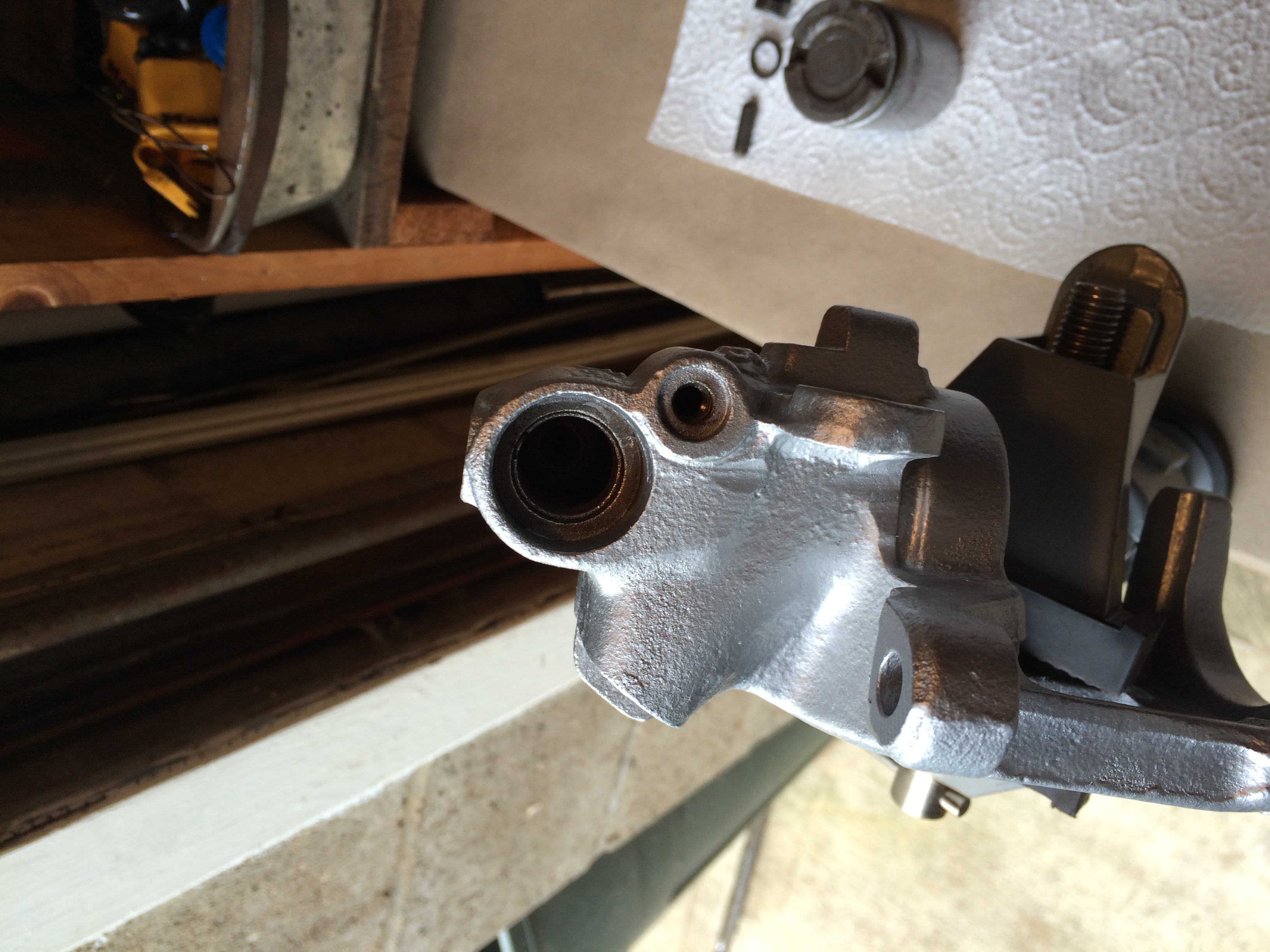

Greased both the emergency brake lever and the threaded rod, installed a new O ring and a new seal .
I put the lever in first followed by the threaded rod making sure the O ring seated correctly, you have to make sure the little dimple on the heavy washer lines up with the hole in the bore, followed by the light washer, spring and spring cage.

Rebuilding Rear Calipers-picture-557.jpg

Rebuilding Rear Calipers-picture-558.jpg

Rebuilding Rear Calipers-picture-559.jpg

Rebuilding Rear Calipers-picture-560.jpg

Rebuilding Rear Calipers-picture-563.jpg

used a C Clamp to compress the spring, be careful you dont want to over tighten the tangs at the end of the spring cage will bend and good luck getting the snap ring in. I used the same pick to install the snap ring, again very easy.
Rebuilding Rear Calipers-picture-564.jpg

Rebuilding Rear Calipers-picture-565.jpg

Rebuilding Rear Calipers-picture-567.jpg

Rebuilding Rear Calipers-picture-570.jpg
I compressed the emergency brake lever spring in the vise, used a piece of tie wire to hold it.
Rebuilding Rear Calipers-picture-571.jpg
Installed the piston O ring and dust boot, after getting the piston started in to the bore you have to turn the piston clockwise while applying pressure

Rebuilding Rear Calipers-picture-572.jpg

Rebuilding Rear Calipers-picture-576.jpg
Done and back on the car
Rebuilding Rear Calipers-picture-577.jpg
WJL is offline   Reply With Quote
Old 10-05-2015, 09:41 PM   #3
Buck268
1st Gear Member

Buck268's Avatar

Join Date: Apr 2009
Location: Michigan
Posts: 61
Default

great write up! I remember years ago when I did rear calipers (reman units, just r&r) I had the worst time getting the parking brake back on; good idea with the vise and wire on the spring!
Buck268 is offline   Reply With Quote
Old 10-05-2015, 10:27 PM   #4
Urambo Tauro
2nd Gear Member

Urambo Tauro's Avatar

Join Date: Aug 2015
Location: SE Michigan
Posts: 493
Default

I nominate this thread for a sticky.
Urambo Tauro is offline   Reply With Quote
Old 10-06-2015, 03:40 PM   #5
WJL
2nd Gear Member
Thread Starter

WJL's Avatar

Join Date: Feb 2013
Location: PA
Posts: 414
Default

Thanks this ended up being a fun little project and for ten bucks you cant beat it. By the way the silver looks way better, i will take a picture when i get a chance.
WJL is offline   Reply With Quote
Old 11-14-2015, 11:44 PM   #6
ESABATM
2nd Gear Member

Join Date: Apr 2009
Location: GA
Posts: 191
Default

Nice write-up
ESABATM is offline   Reply With Quote
Old 11-16-2015, 05:20 PM   #7
WJL
2nd Gear Member
Thread Starter

WJL's Avatar

Join Date: Feb 2013
Location: PA
Posts: 414
Default

Thanks it was pretty easy and for five bucks just cant beat it. I been meaing to take a picture of it with the wheel on but it has already got cold here and i have put my car in the garage with hopes of getting it out one or two more times before the weather really sets in.
WJL is offline   Reply With Quote
Old 11-18-2015, 10:43 AM   #8
uberstang1
Chupacabra

uberstang1's Avatar

Join Date: Jul 2004
Location: wilkes-barre PA
Posts: 9,612
Default

Great thread, gonna sticky it.
uberstang1 is offline   Reply With Quote
Old 11-24-2015, 05:13 PM   #9
WJL
2nd Gear Member
Thread Starter

WJL's Avatar

Join Date: Feb 2013
Location: PA
Posts: 414
Default

Thanks Uberstang, just got back from camp and saw this post, if any one has questions i would be happy to answer
WJL is offline   Reply With Quote
Old 12-07-2015, 09:52 AM   #10
My1stGT
2nd Gear Member

My1stGT's Avatar

Join Date: Jun 2008
Location: ohio
Posts: 350
Default

need new caliper on mine but now i think ill go this route. thanks for the write up .
